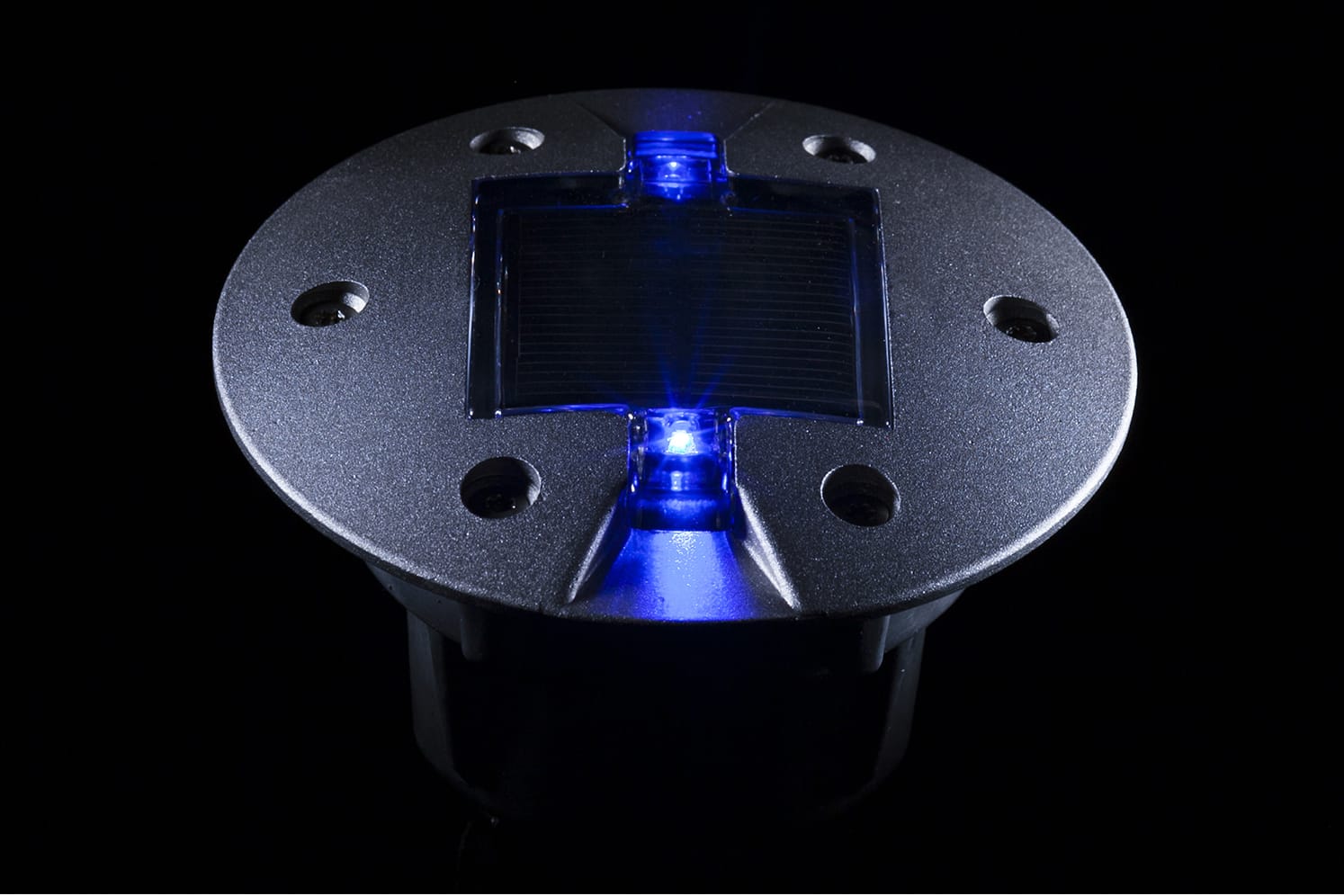

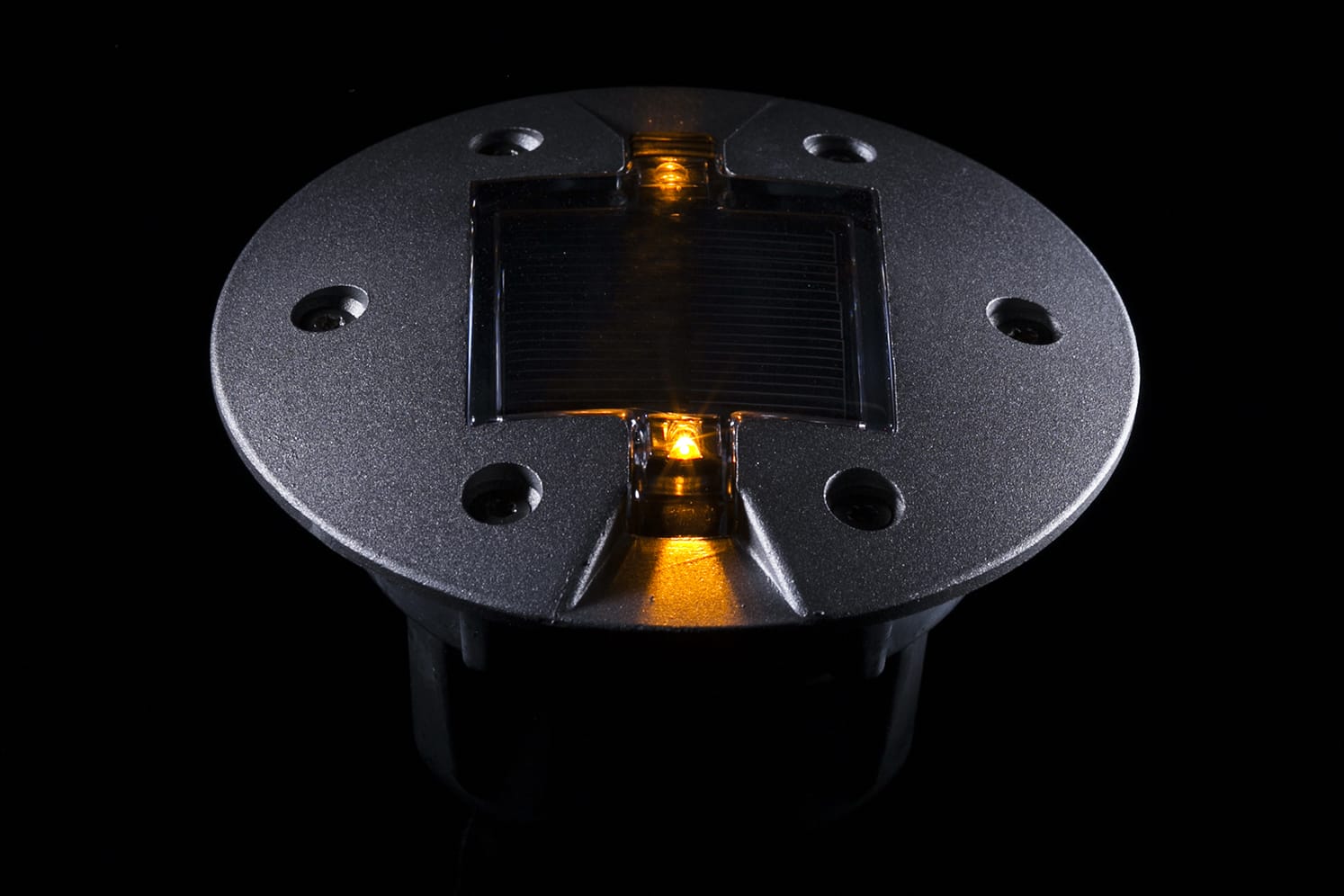

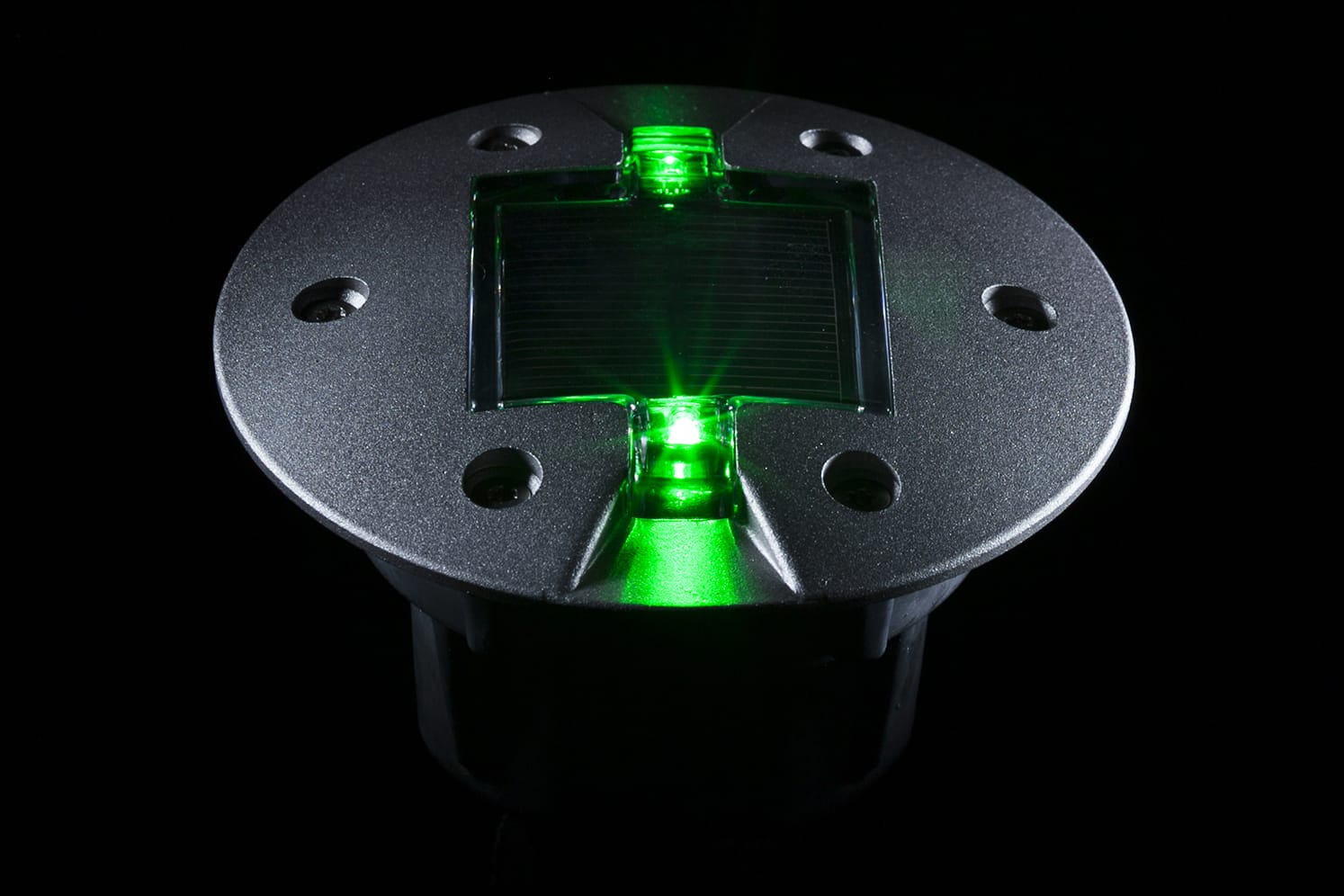

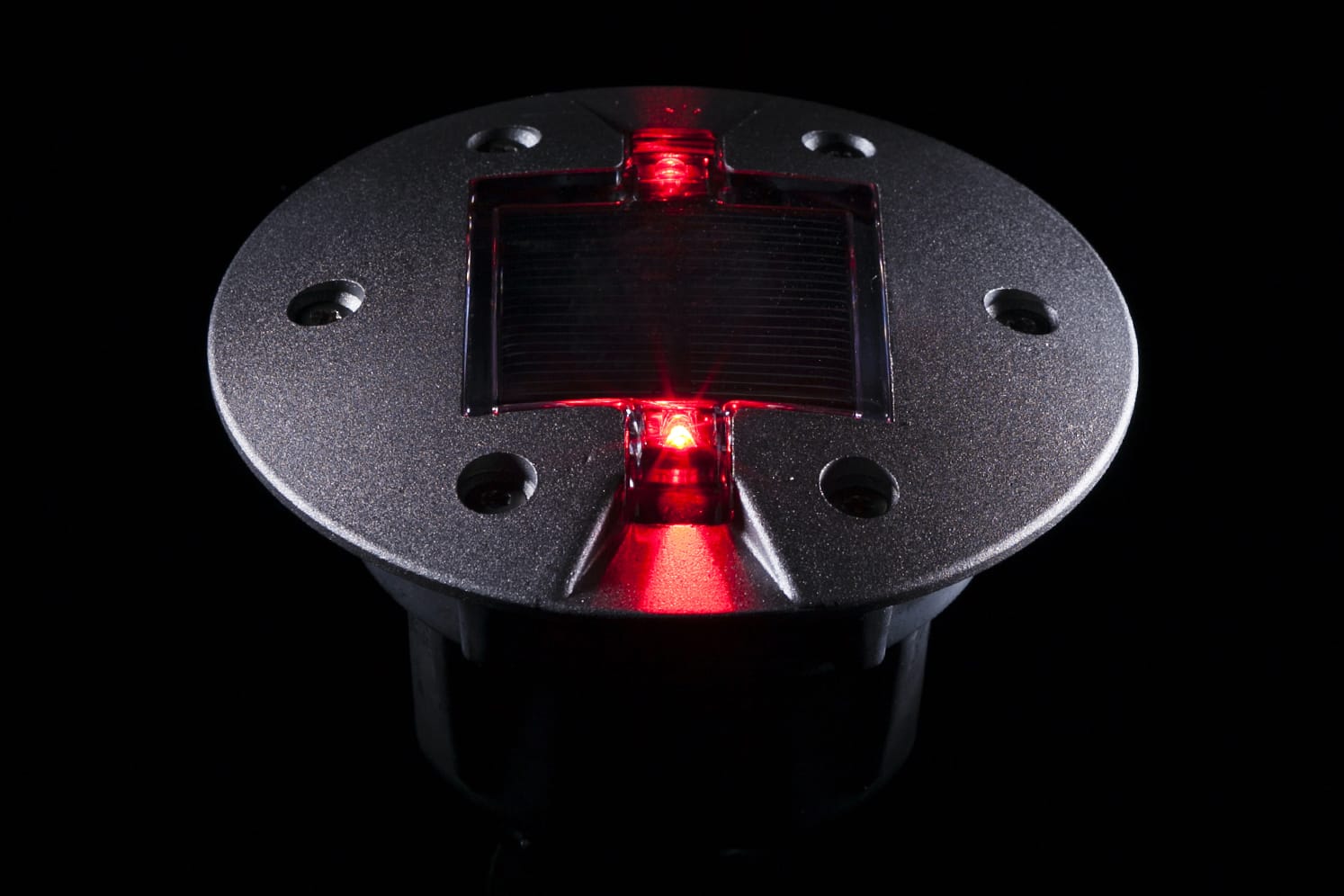

Embedded solar stud

Fully self-contained luminous beaconing solution. Resembles a roadway nail for complete integration into urban and architectural contexts. Easy maintenance via the product cover.

Resistance
Pedestrian
Cyclist
Car
Standards
IK10+ (100 Joules)
IP68 (5 Meters)

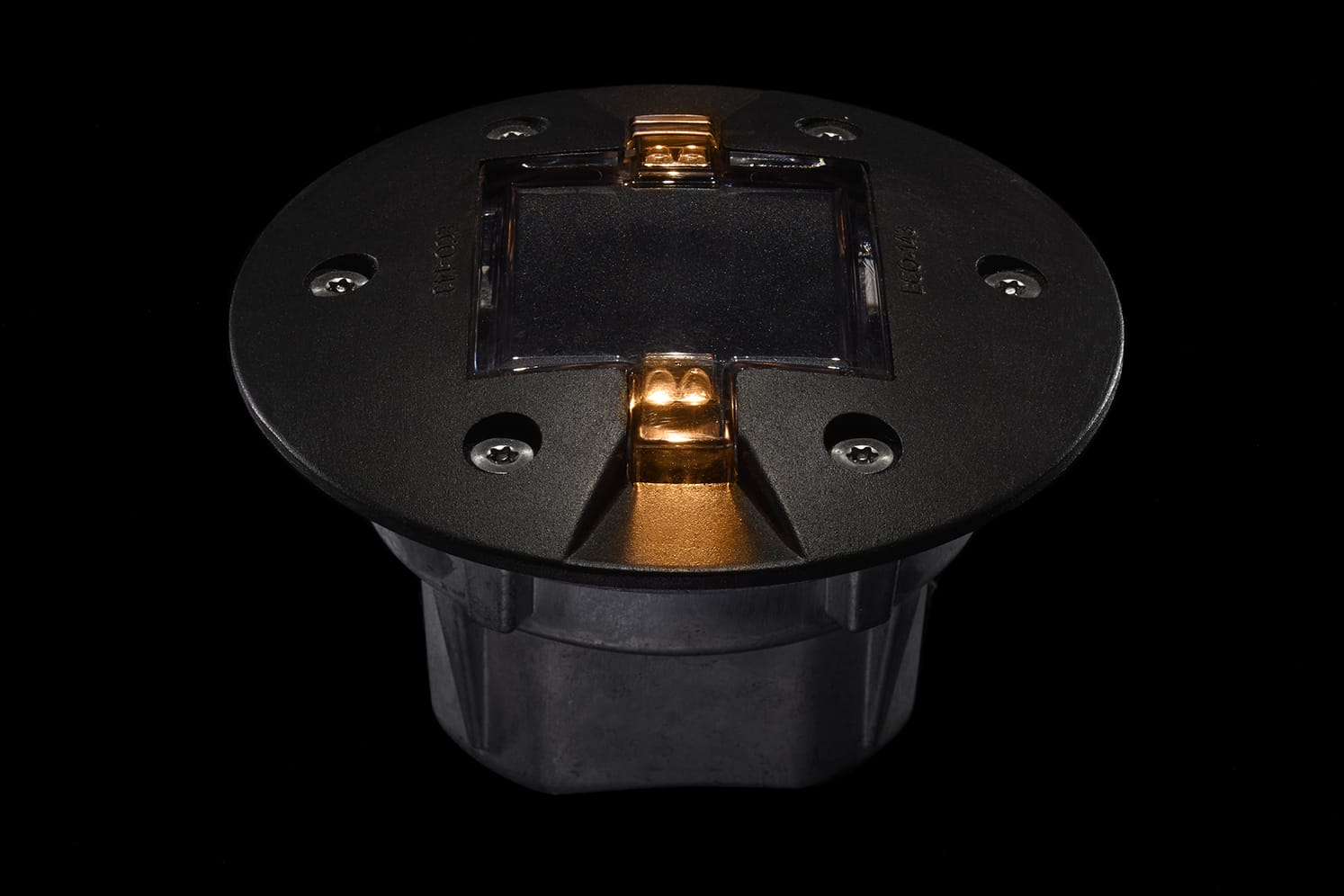

LED Colors
Red
Amber
2700K
3000K
4000K
6500K
Green
Blue
Beaconing

1 LED, 2 LED, 4 LED, Constant, Blinking, Grazing

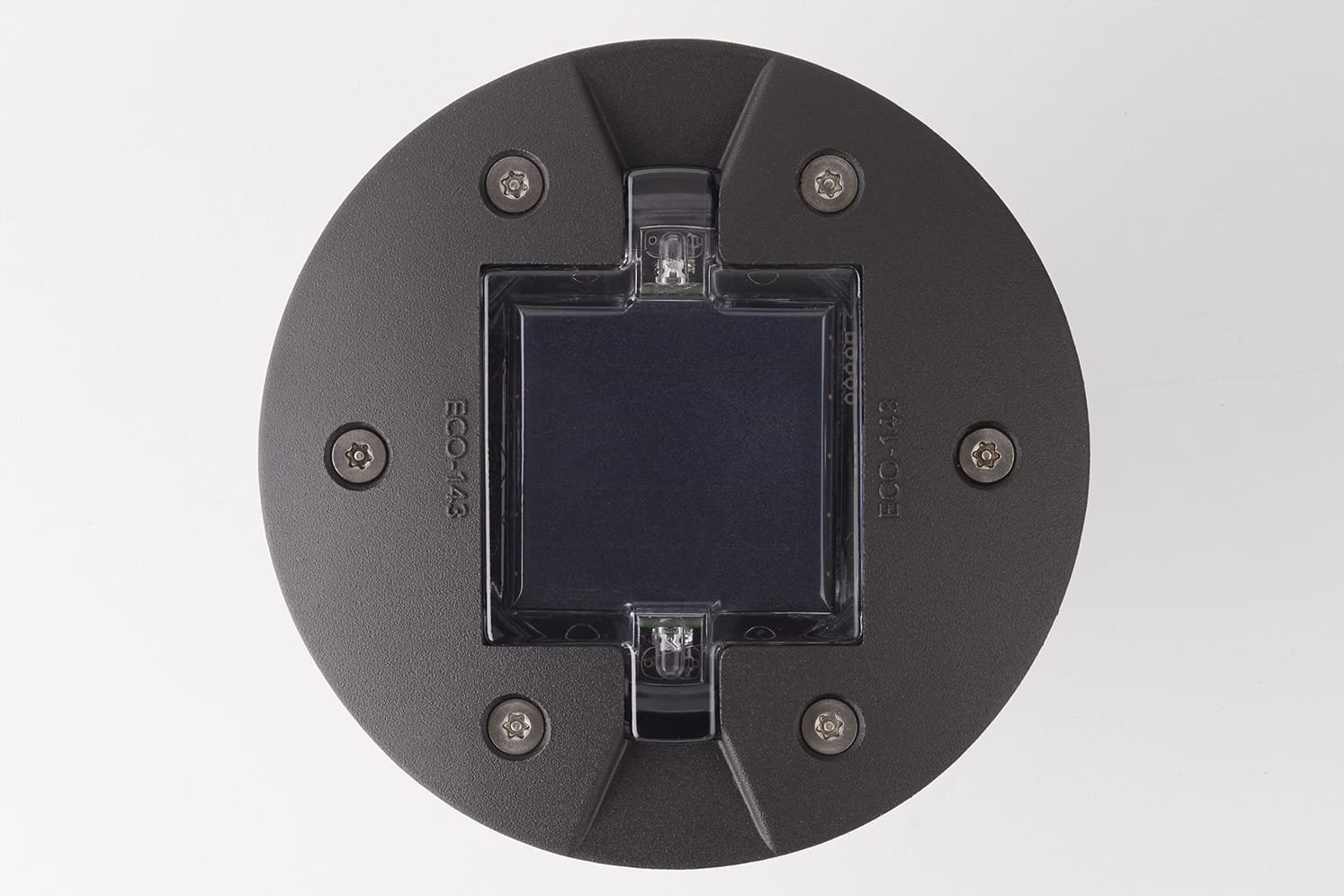

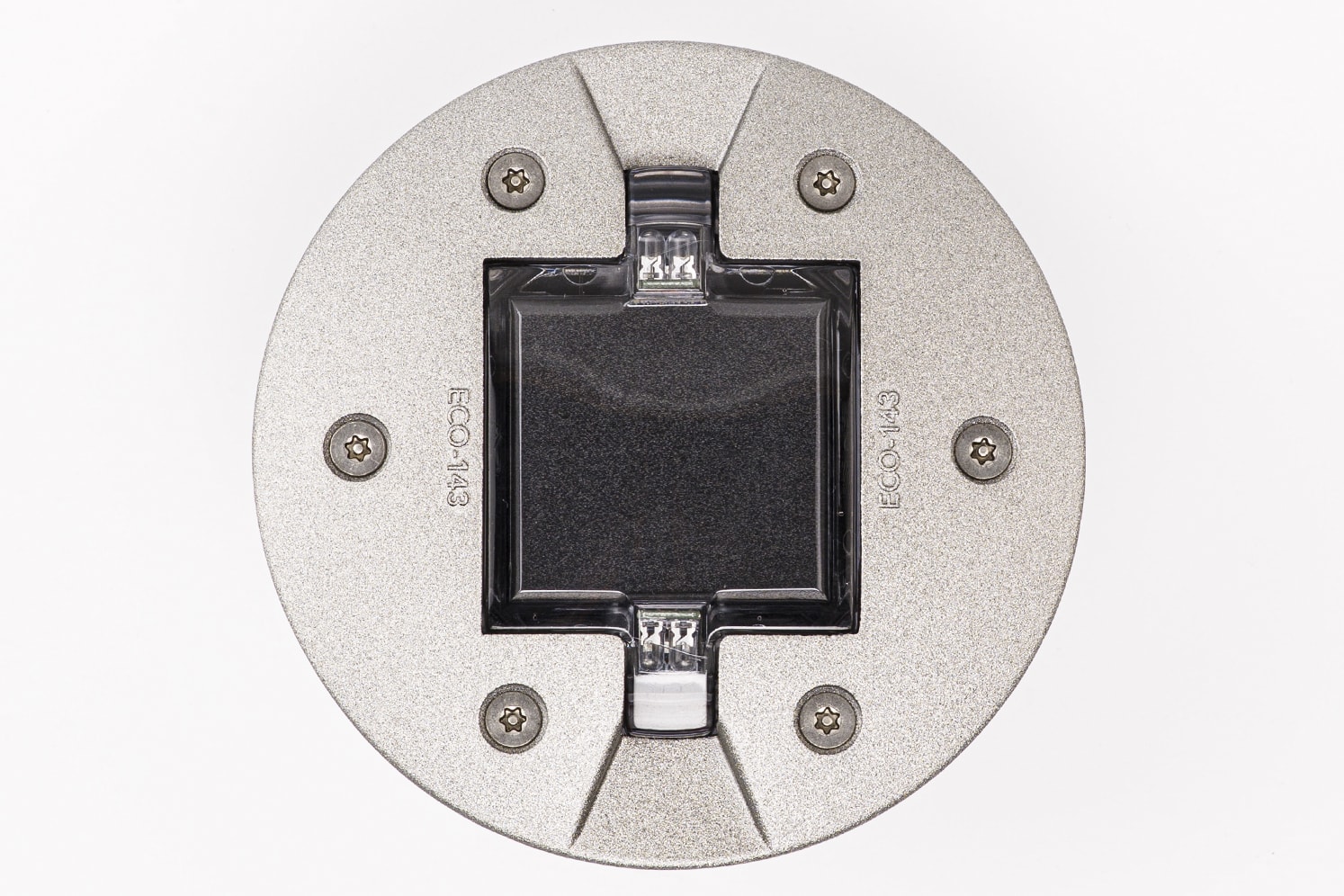

Customization

Aluminium cap, Anodised cap, Powder coated cap (RAL available), Polished cap, Unpolished cap

Recycling
Ecosystem
Screlec
Certifications
RoHS
CE
Veritas
CapTronic
Minalogic

TECHNICAL CHARACTERISTICS

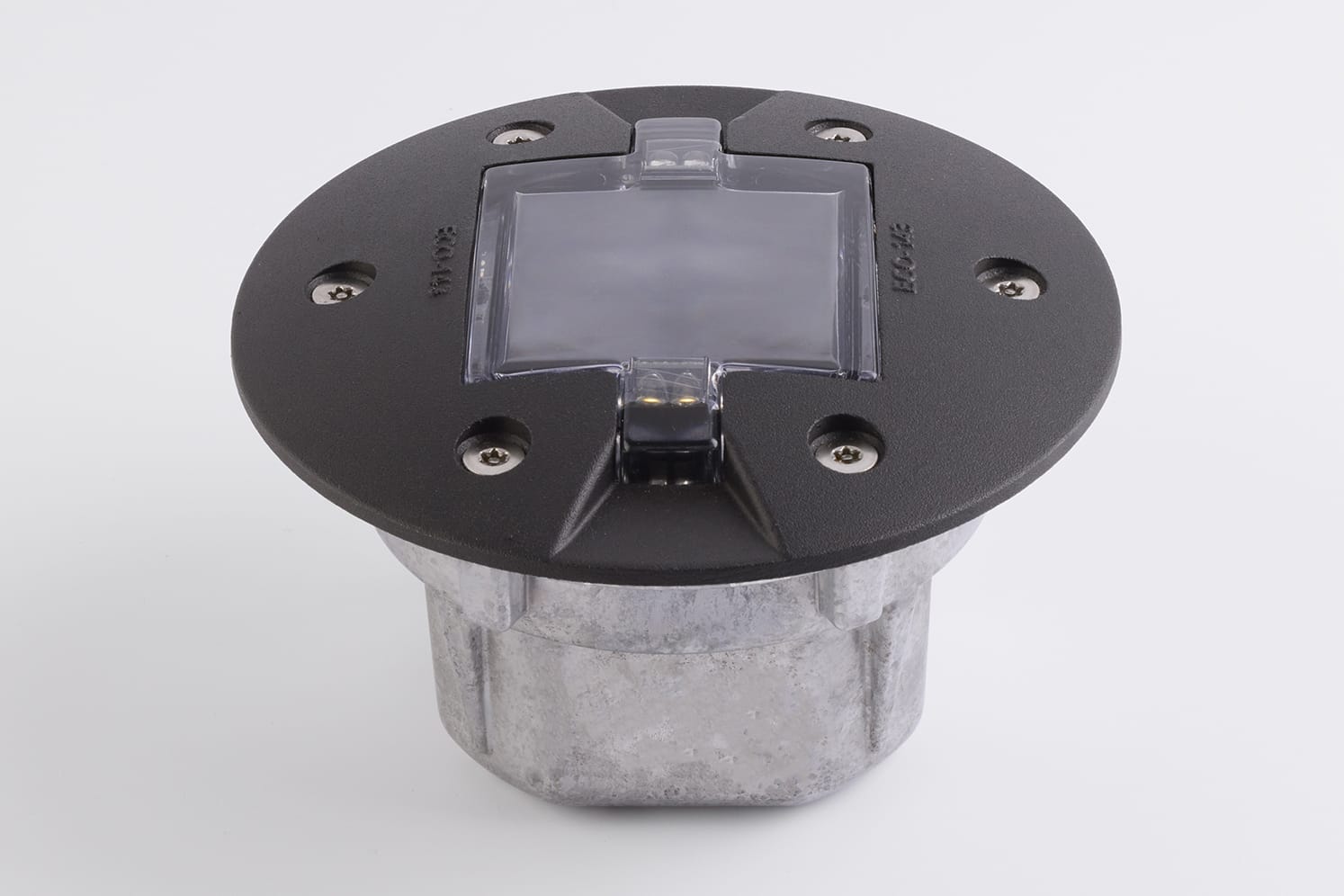

Dimensions and weight

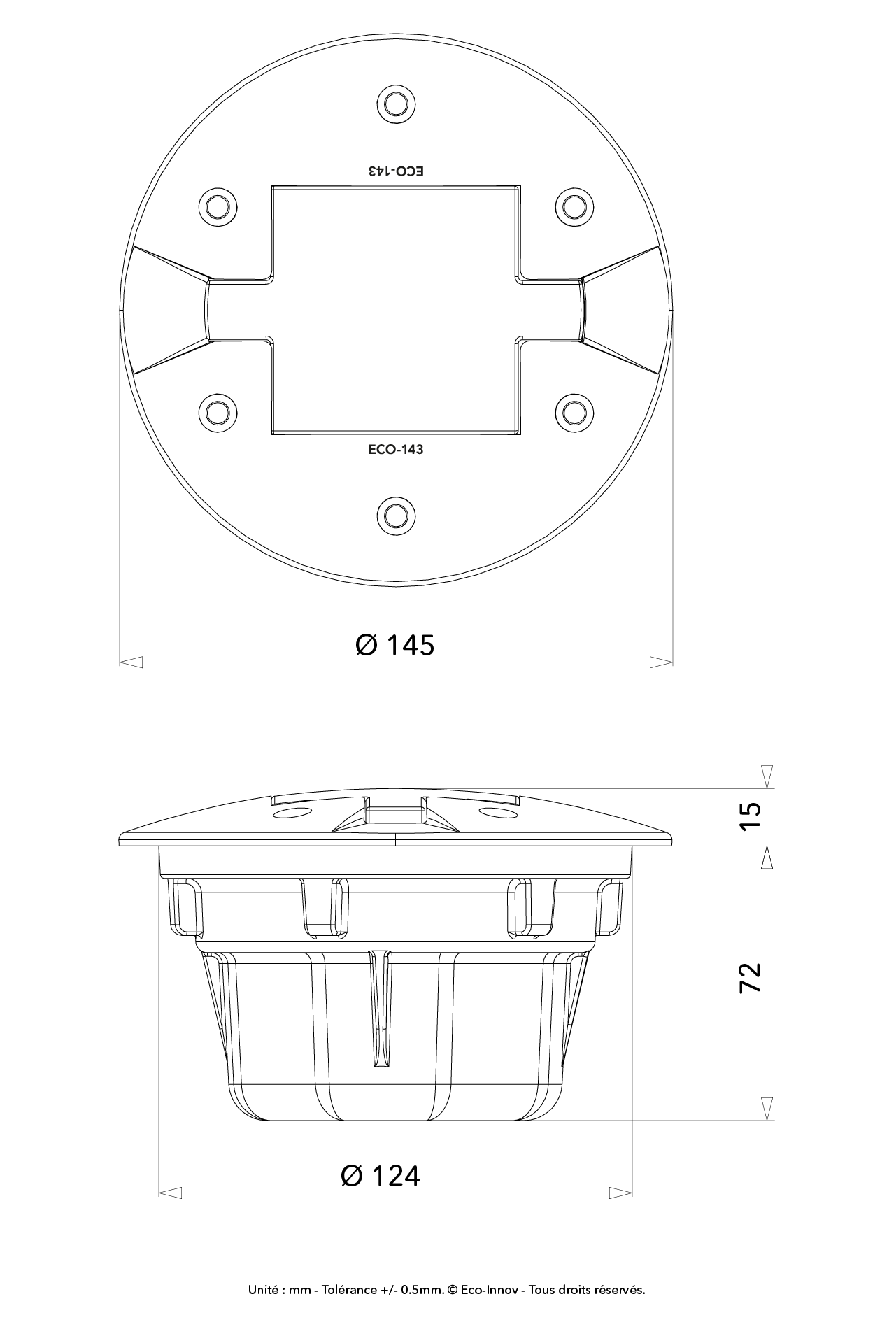

Upper diameter: 145 mm.
Total height: 87 mm.
Height above roadway: 3 mm at each end / 15 mm in the centre.
Weight: approximately 1 Kg.

Materials
Aluminium, Polycarbonate, Silicon (photovoltaic panel).
Recycling managed by ECOSYSTEM.

Energy storage
1. Condenser.
2. Ni-Mh accumulator.

Maintenance
Solar electronic module replaced via the product cover.

Working temperature range
-30°C to +85°C.

Protection indices
IP 68 – 5 meters (watertightness).
IK 10+ 100 Joules (impact resistance).

Pressure resistance
Withstands the pressure of pedestrians, cycles and light vehicles.

LIGHTING CHARACTERISTICS

Unidirectional or bidirectional beaconing, 1 or 2 LEDs per side.
Constant or blinking 2.5Hz (2.5 flashes per second) ±10%.
LEDs colours: cool white, warm white, amber, red, green, blue.

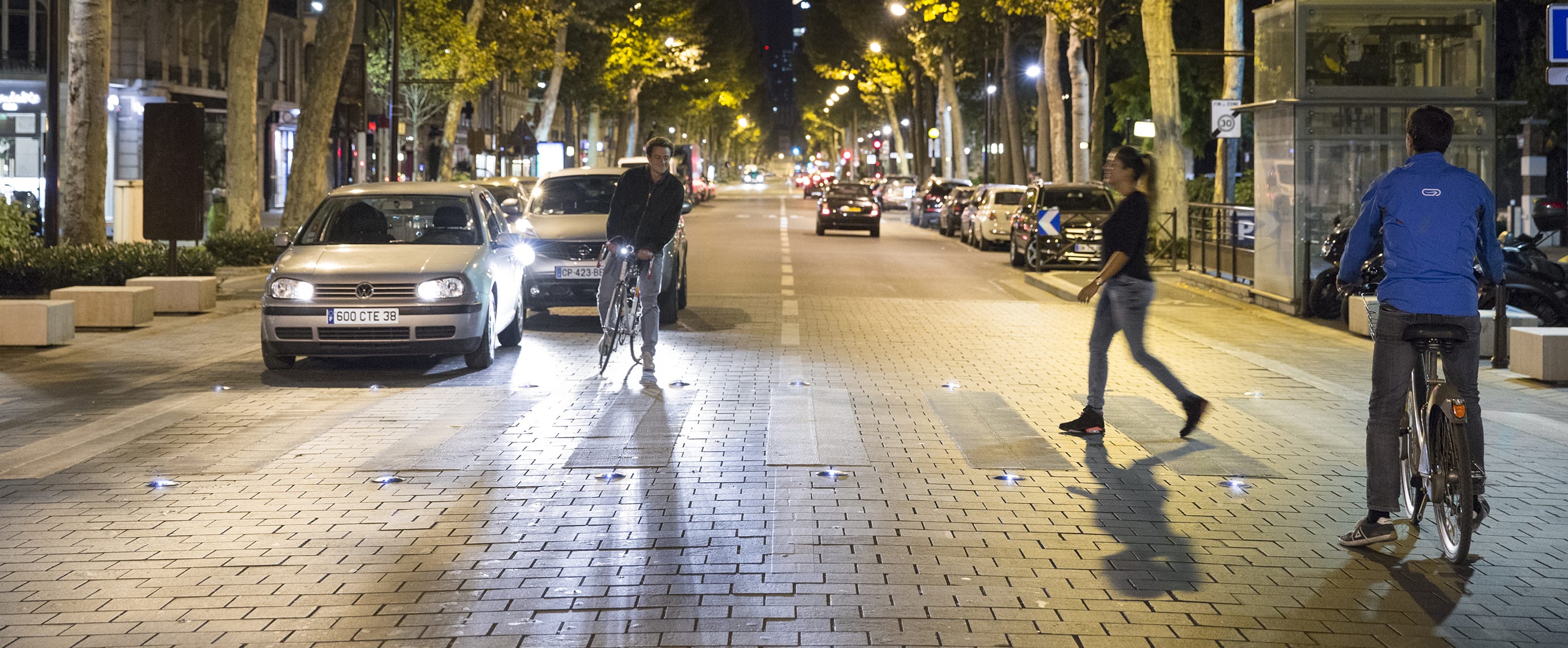

1 – After deciding where the studs are to be installed, drill a hole with a minimum diameter of 126 mm and 100 mm deep.

2 – Carefully brush and clean the hole to remove any dust and traces of damp that would affect the efficiency of the adhesive.

3 – Pour the appropriate bonding adhesive into the hole, then insert the stud into the adhesive. It is essential to use a sufficient quantity of SIKADUR 30 epoxy adhesive: there must be adhesive under the entire lower part of the aluminium cover. Use a mallet to position the stud flush with the ground surface. Make sure the LEDs are facing the right way and are parallel to the ground. Immediately remove any residual adhesive from around the stud. If the stud is installed on a tarred concrete support, we recommend using SIKADUR 30 two part epoxy adhesive. On a wooden support, we recommend using less rigid adhesives (Please contact us for further information).

4 – Place a weight on the stud until the adhesive has set (refer to the instructions).

Remark: make sure to keep the module and LEDs clean and protect them throughout these operations.

Failure to comply with these instructions may lead to the guarantee being suspended.

Lifespan and warranty

BATTERY
a. Condenser: Average lifespan more than 10 years. 2-year warranty*
b. Ni-Mh accumulator: Average lifespan more than 5 years. 2-year warranty*

Easy maintenance via the product cover.

* The warranty applies in the event of complete failure of the self-contained lighting system during normal usage. It covers replacement of the faulty article with an identical model delivered free of charge to destinations in France, after the faulty article has been returned and analysed. On-site intervention fees are not included. Mechanical damage are not covered by the warranty.

For optimal operation, we recommended to install our solar equipment on sites with good light exposure.
