Hard-wired embedded road stud
Low-consumption luminous beaconing solution, suited to roads with regular heavy vehicle traffic. Easy maintenance via the cover.
16 LED, Constant, Blinking, Synchronized blinking, Sequential, Grazing
Stainless steel cap, Custom wiring
Dimensions and weight
Diameter of stud: 161 mm.
Total height: 101 mm.
Height above roadway: 9 mm in the centre of the stud (suitable for snowplough blades).
Weight:approximately 2.2 kg.

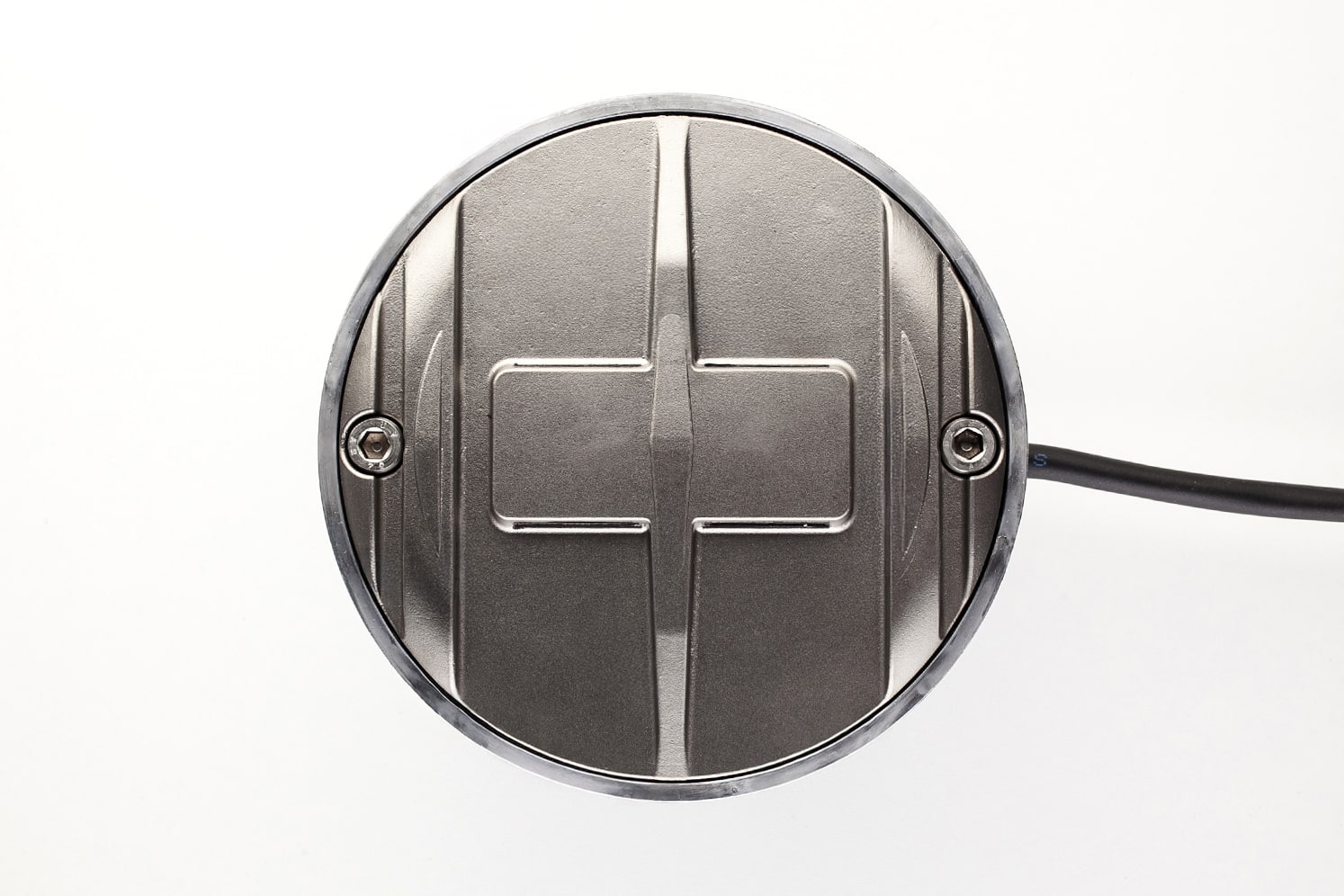

Stainless steel body and upper cover.
Polycarbonate screen to protect LEDs.
Recycling managed by ECOSYSTEM.
Power supply and consumption
12V DC or 24V DC / 1.92 W to 3.84 W.
230V AC on request (constant LEDs only).
Class III in standard version.
Class II in 230V AC version.
Working temperature range
-30°C to +85°C.
Suitable for intense traffic.
Withstands heavy vehicle traffic.

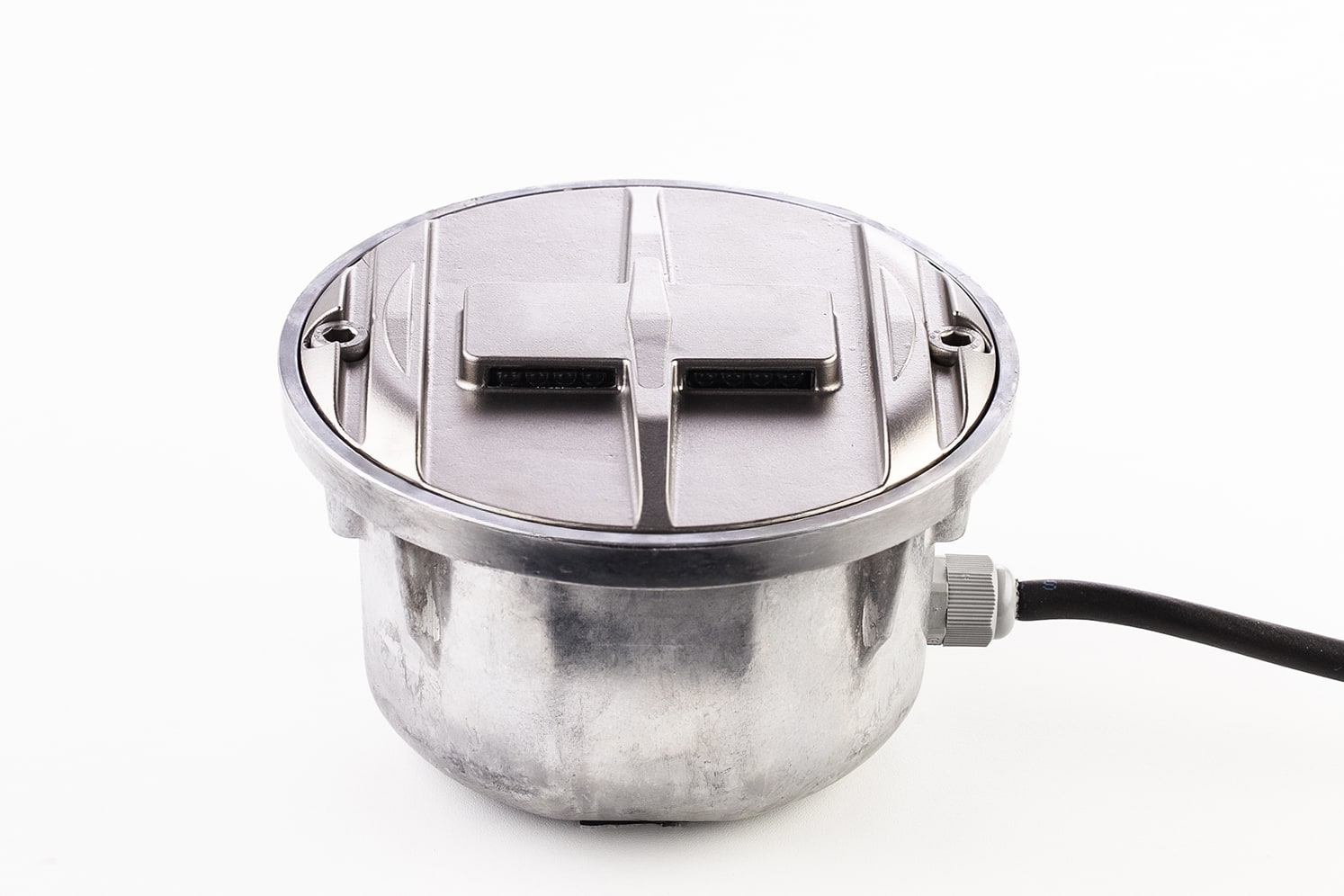

1 or 2 stuffing boxes and 3 metres of HO7RN-F 2×1.5 mm² cable by default.
Additional cable or pre-wired studs on request.
More than 60 tonnes on the surface of the stud.
IP 68 (watertightness).
IK 10 (impact resistance).
Bidirectional beaconing, 2×8 LEDs.
Constant, blinking or sequential mode.

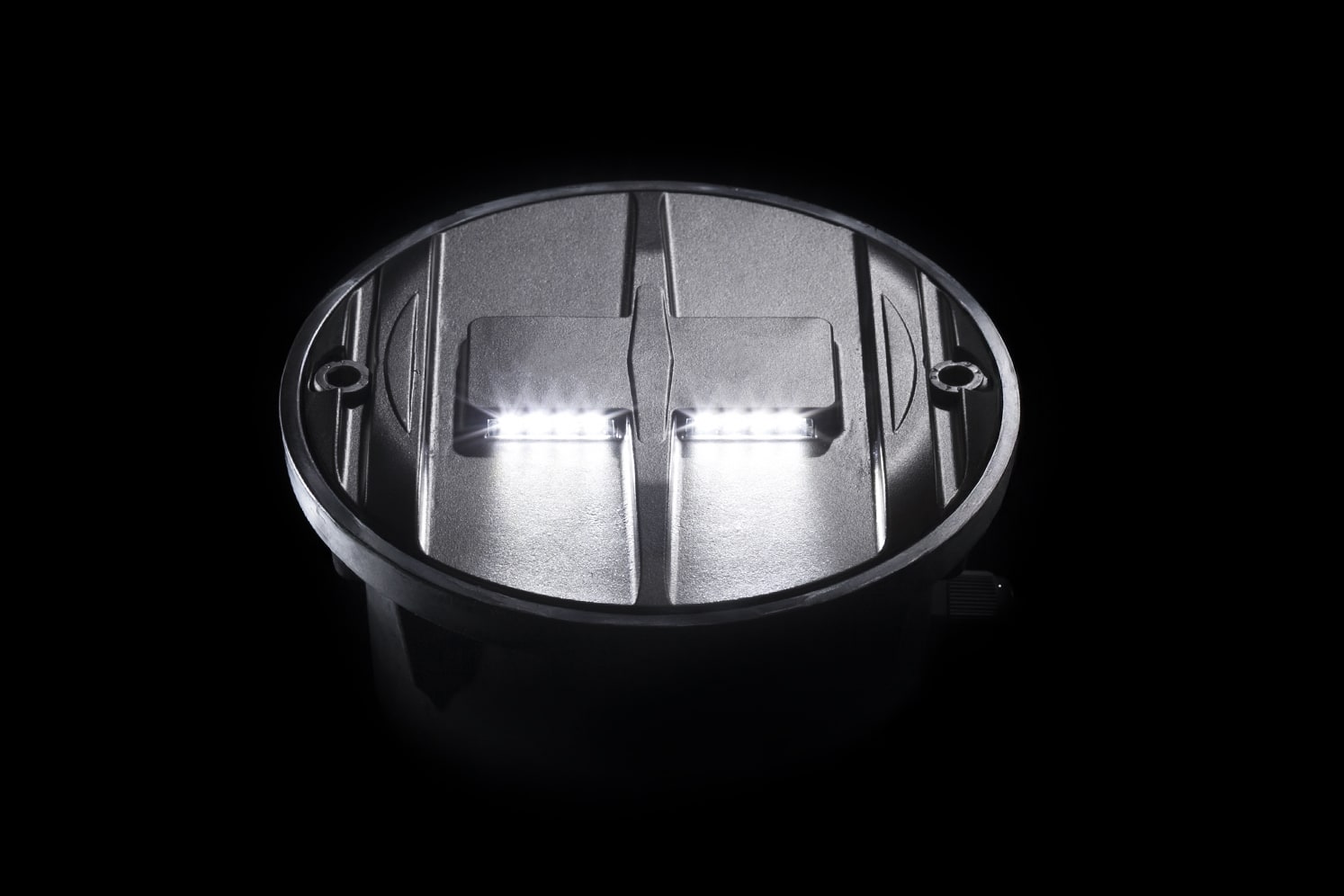

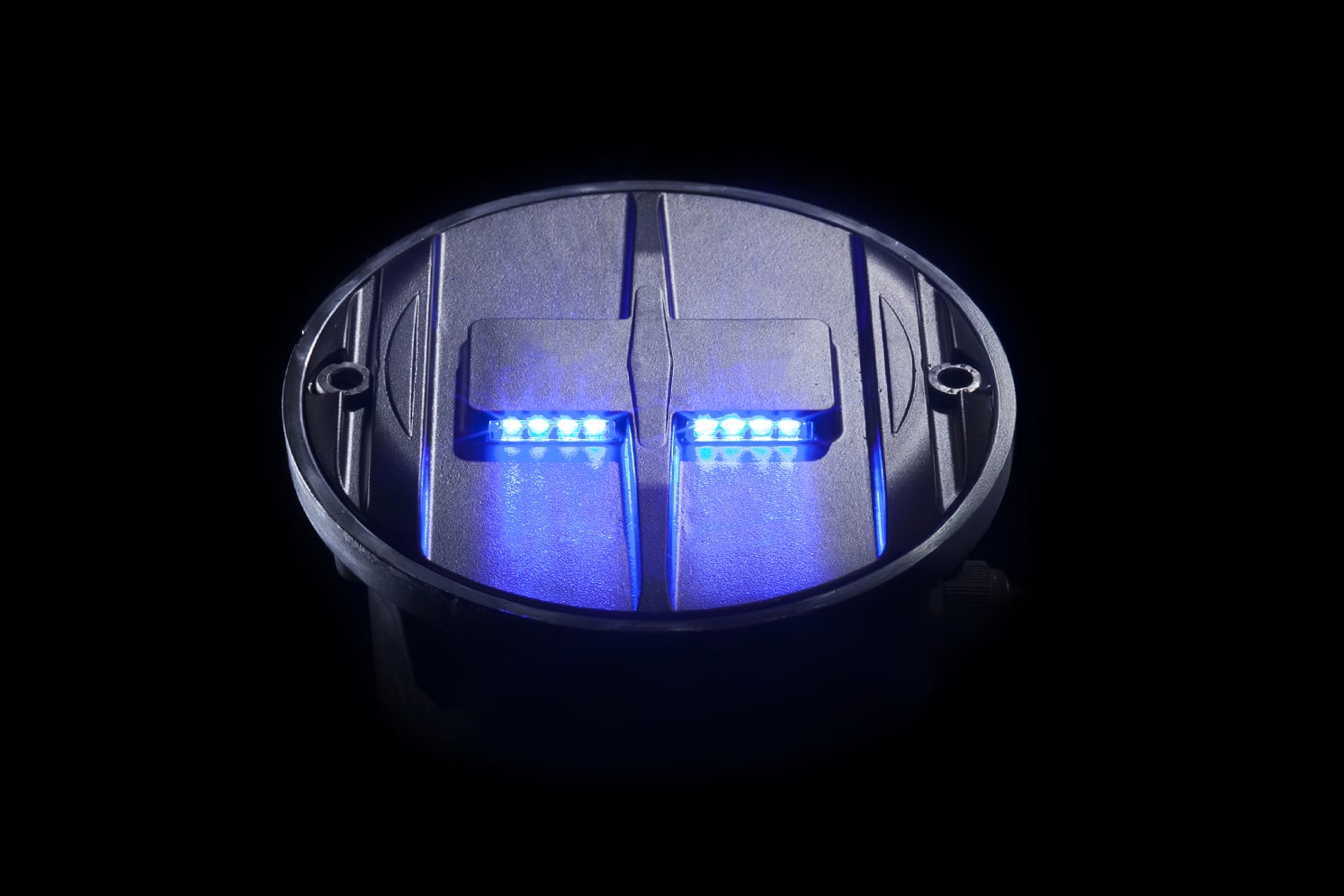

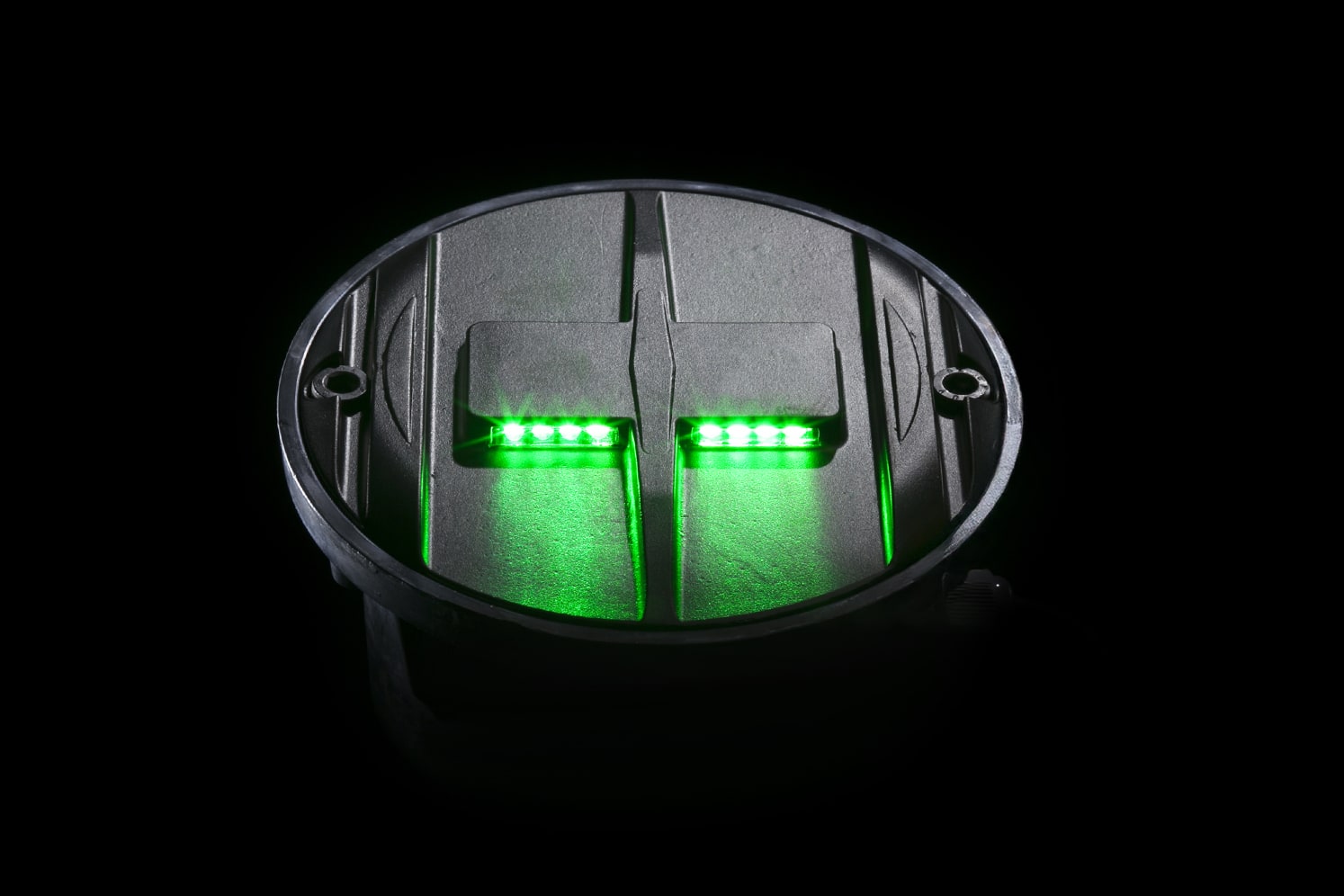

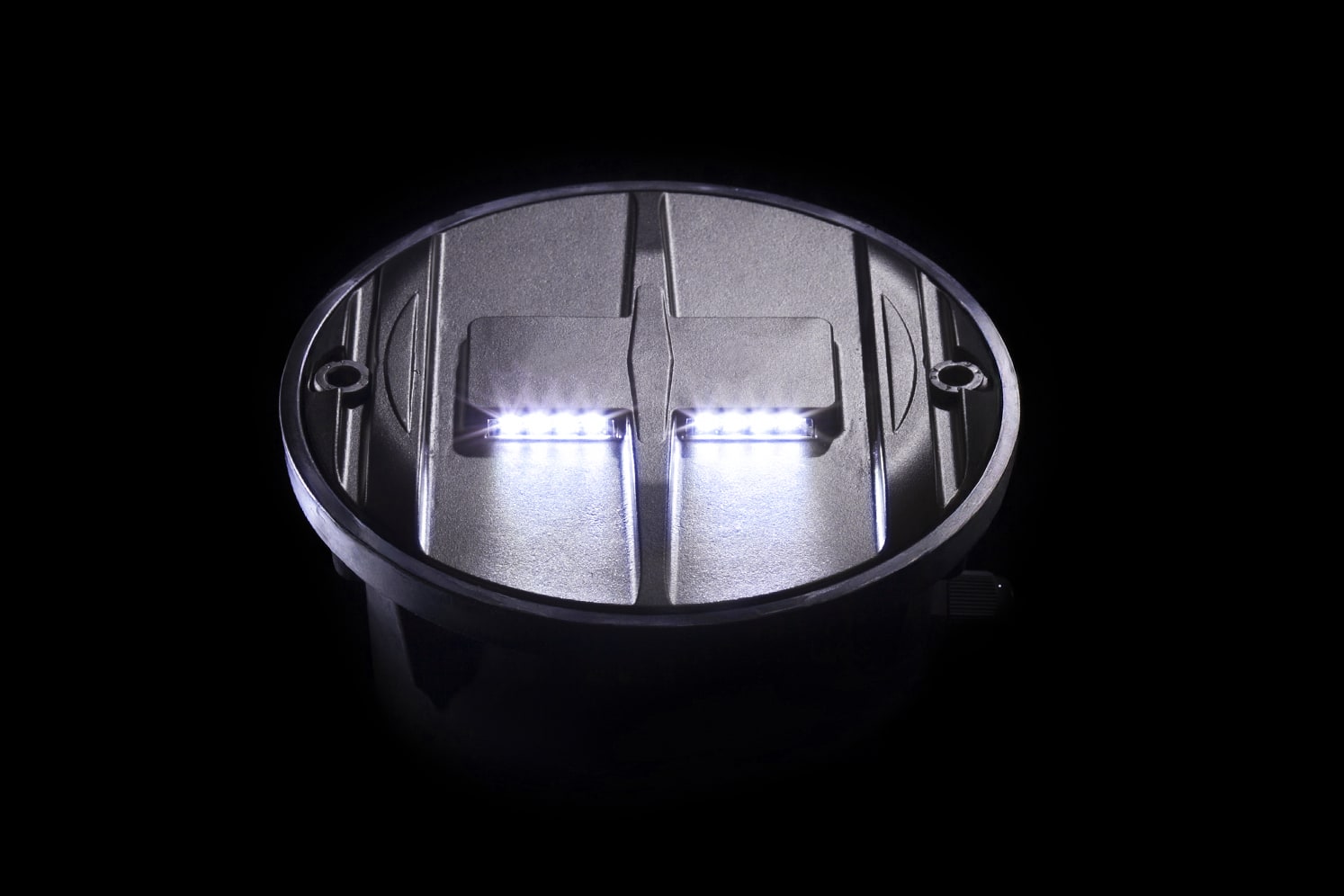

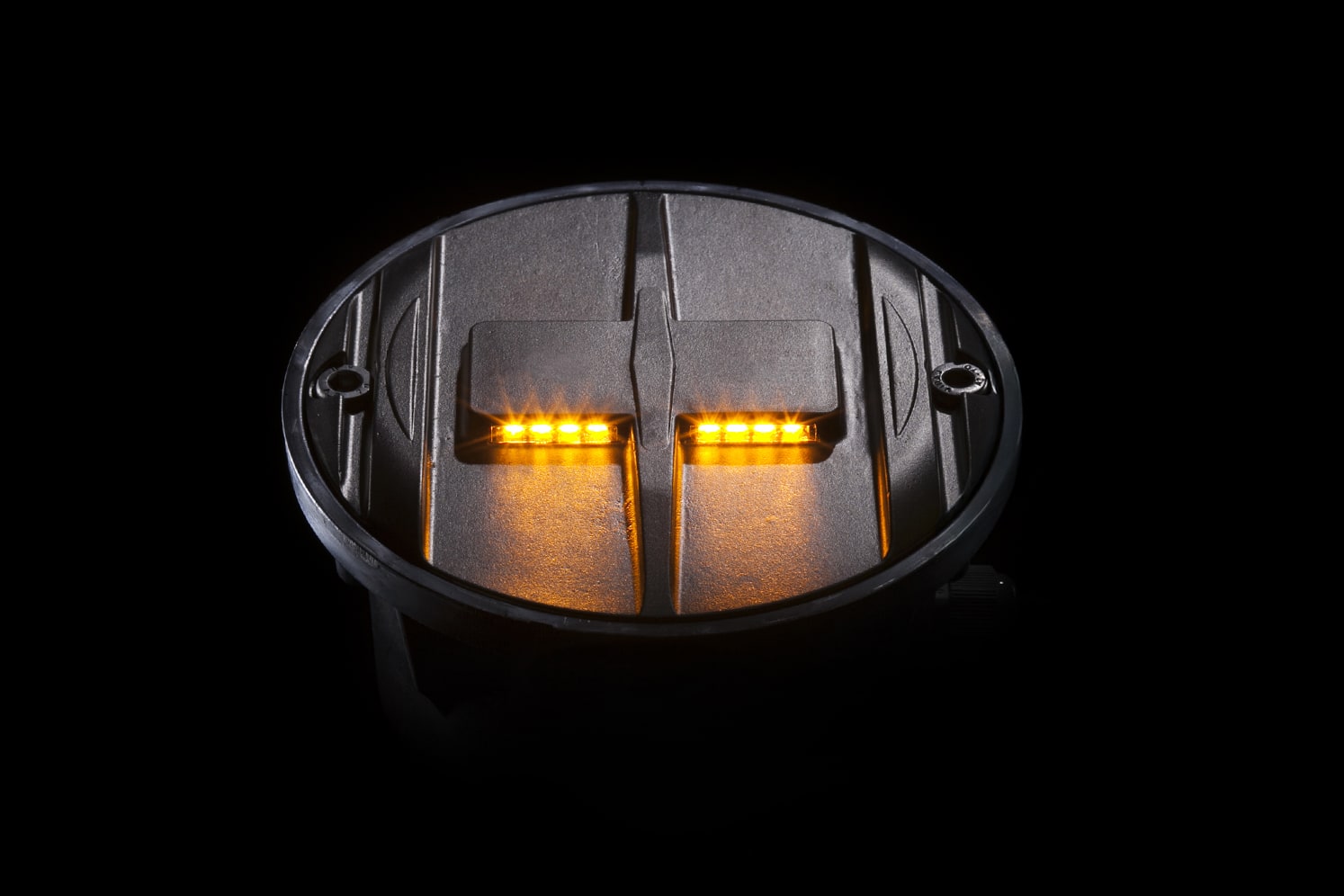

LEDs colour: white, blue, green, red, amber.
1 – Decide where the studs are to be installed.
2 – Drill holes with a minimum diameter of 168 mm and 100 mm deep.
3 – Cut a groove at least 25 mm wide and 70 mm deep between the holes.
4 – Carefully brush and clean the holes to remove any dust and traces of damp that would affect the efficiency of the adhesive (follow the manufacturer’s instructions).
5 – Pour suitable adhesive into the holes and insert the pre-wired studs. Use a mallet to make sure they are flush with the ground surface. Make sure the LEDs are facing the right way and are parallel to the ground. Immediately clean any residual adhesive with a clean, dry rag. We recommend using Sikadur 30 two-component epoxy resin (grey seal) or Sika Fastfix 138 FTP hydraulic mortar (black seal).
6 – Place a weight on the stud until the adhesive has set (refer to the instructions).
IMPORTANT: Do not bend the cable where it leaves the stuffing box. Protect cables in a sheath. The guarantee may not apply if these instructions are not followed.
Lifespan and warranty
LED: 100,000 hours (> 10 years of round-the-clock operation).
* The warranty applies in the event of complete failure of the self-contained lighting system during normal usage. It covers replacement of the faulty article with an identical model delivered free of charge to destinations in metropolitan France, after the faulty article has been returned and analysed. Removal of the faulty article, installation of the new one and any mechanical damage are not covered by the warranty.Recycling
