Decorative hard-wired embedded stud

Low-consumption luminous beaconing solution, suitable for areas that cannot be crossed by motor vehicles. Easy maintenance via the cover.

Resistance
Pedestrian
Cyclist
2T
Standards
IK10 (20 Joules)
IP68
LED Colors

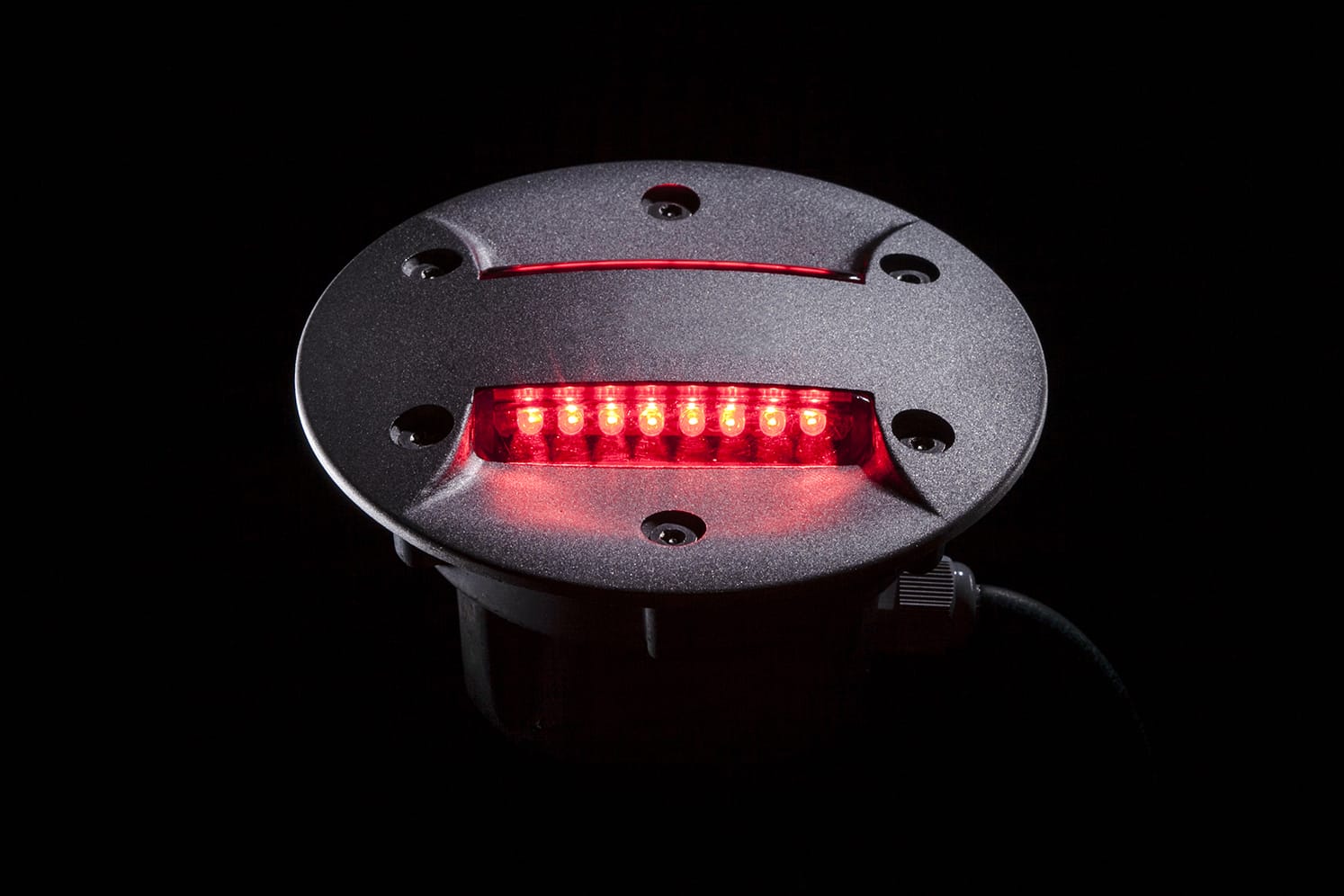

Red

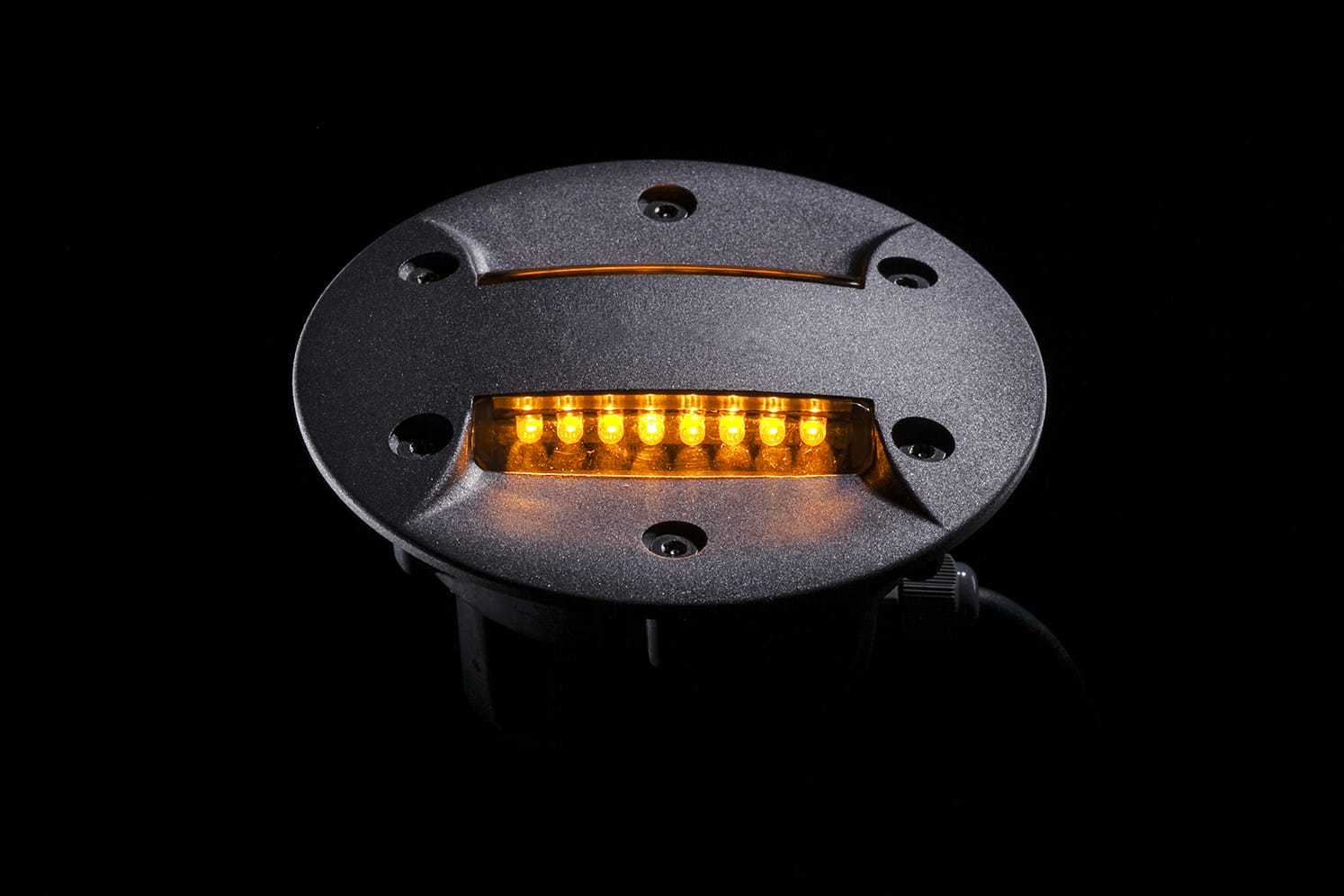

Amber
3000K
4000K
6500K

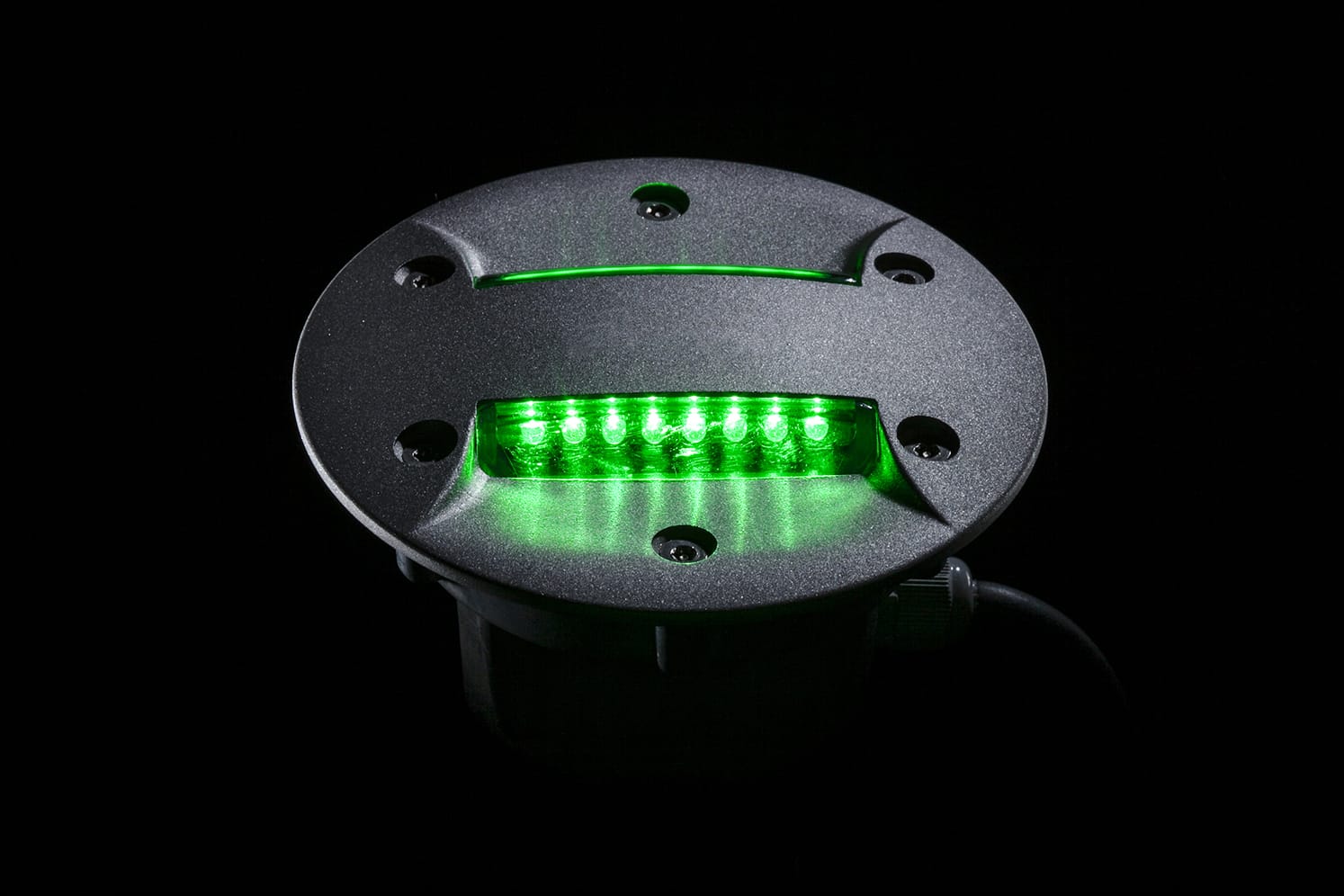

Green

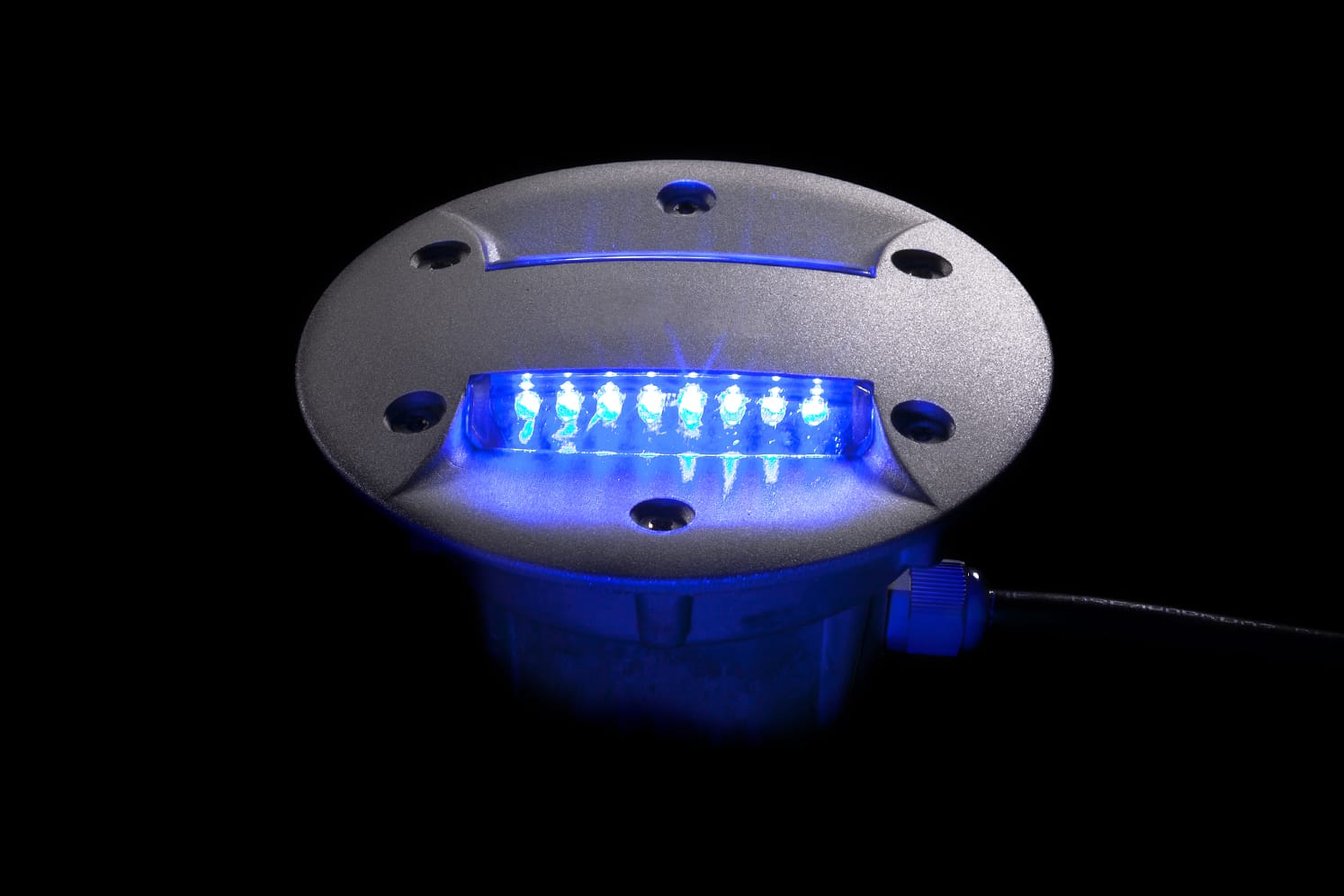

Blue
Beaconing

8 LED, 16 LED, Constant, Blinking, Sequential

Customization

Aluminium cap, Anodised cap, Powder coated cap (RAL available)

Recycling
Ecosystem
Certifications
RoHS
CE
Veritas
CapTronic

TECHNICAL CHARACTERISTICS

Dimensions and weight

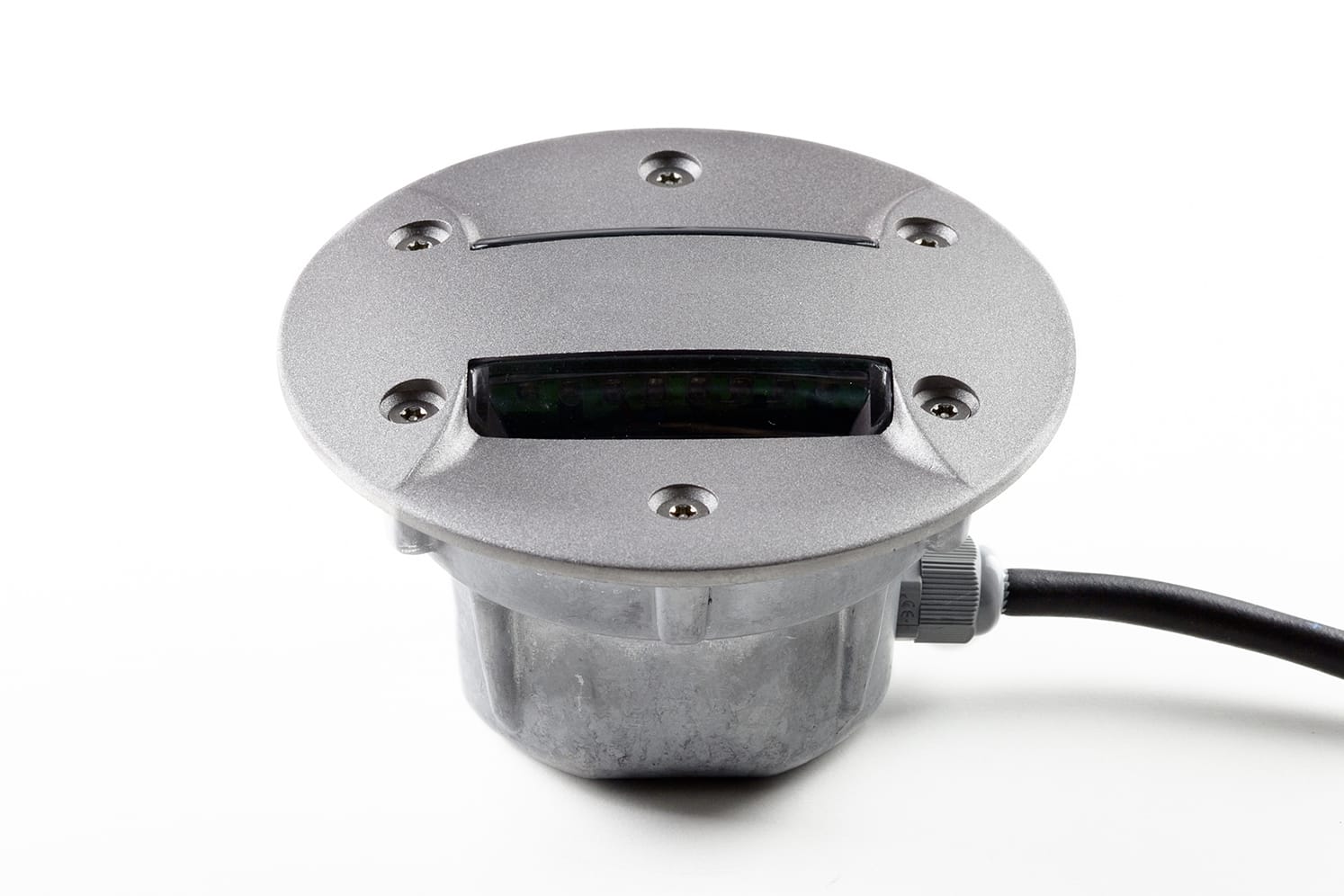

Diameter of stud: 145 mm.
Total height: 72 + 14 mm.
Height above roadway: 3 mm at each end / 14 mm in the centre.
Weight: approximately 1.2 kg.

Materials
Aluminium and Polycarbonate: Lexan 243R (Test MVR 300/1.2 ISO 1133)
Recycling managed by ECOSYSTEM.

Protection indices
IP 68 (watertightness).
IK 10 (impact resistance).

Power supply and consumption
24V dc / 0.96 Wh to 1.92 Wh.

Electrical class
III

Working temperature range
-30°C to +85°C.

Applications
Not suitable for roads used by motor vehicles.


LIGHTING CHARACTERISTICS

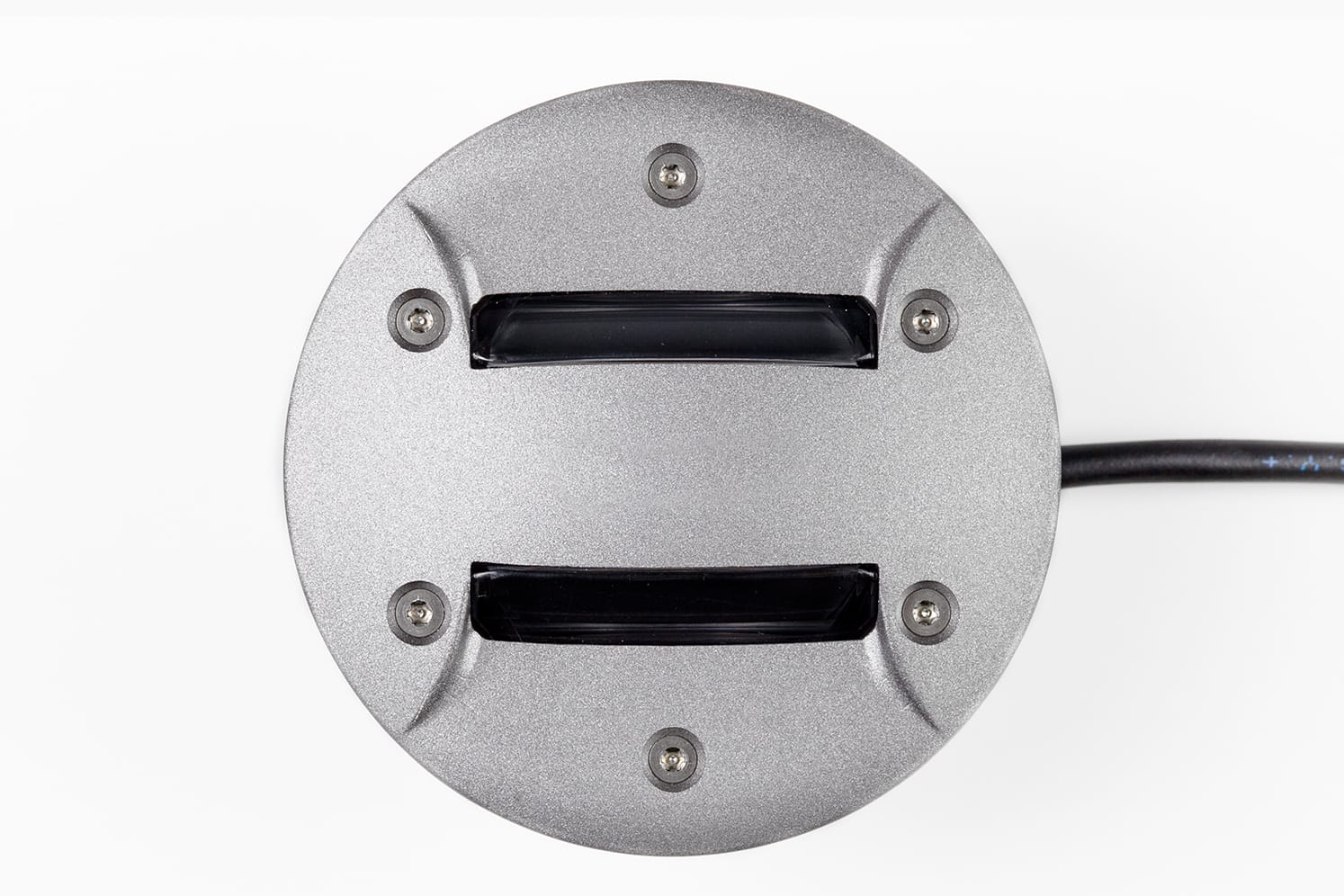

Unidirectional beaconing 8 LED or bidirectional 2×8 LED.
Constant, blinking or sequential mode.

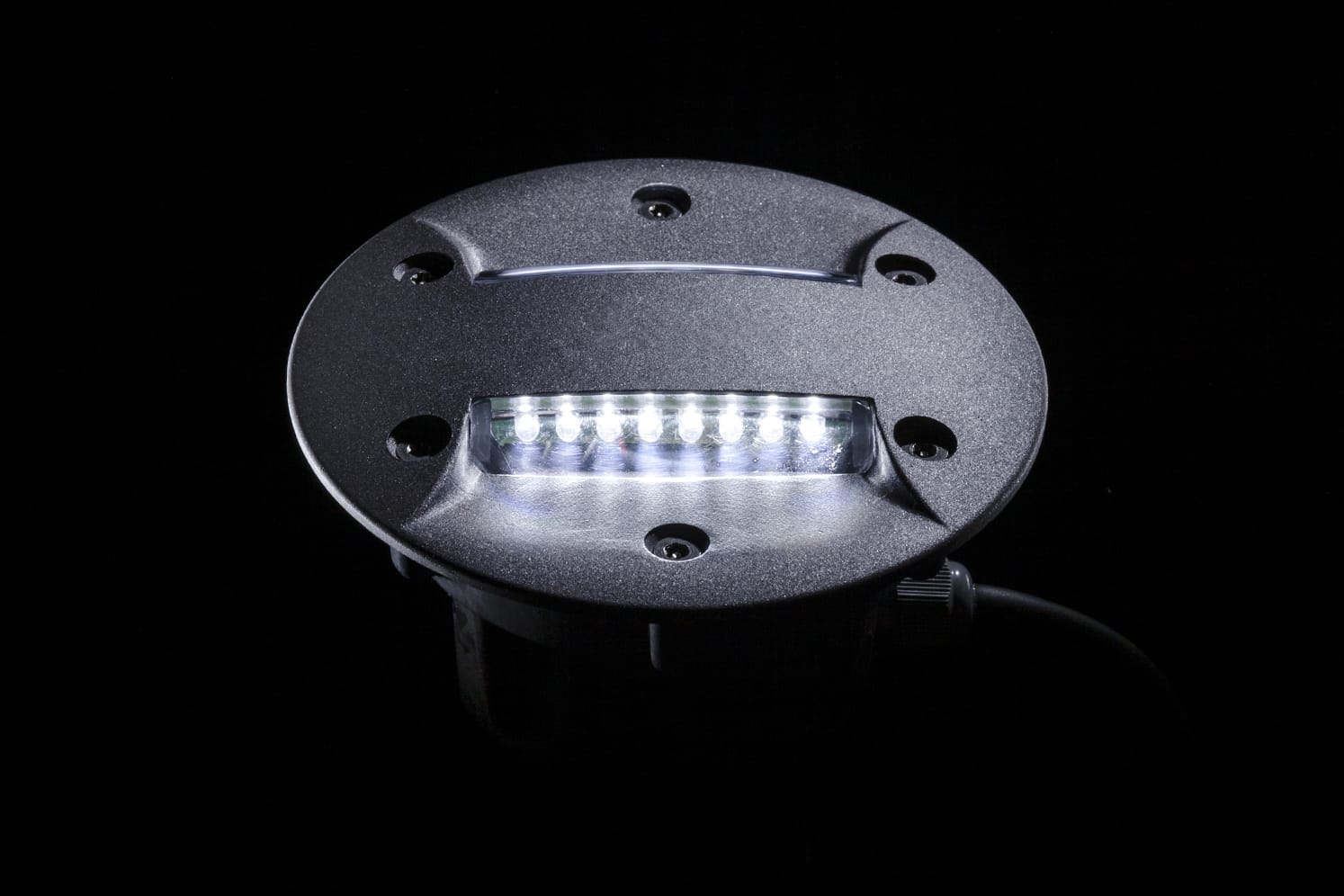

LEDs colours: cool white, warm white, amber, red, green, blue.

1 – Decide where the studs are to be installed.

2 – Drill holes with a minimum diameter of 130 to 135 mm and 80 mm deep.

3 – Using a disk cutter, cut a groove at least 25 mm wide and 70 mm deep between the holes.

4 – Carefully brush and clean the holes to remove any dust and traces of damp that would affect the efficiency of the adhesive (follow the manufacturer’s instructions).

5 – Pour suitable adhesive into the holes and insert the pre-wired studs. Use a mallet to make sure they are flush with the ground surface. Make sure the LEDs are facing the right way and are parallel to the ground. Immediately clean any residual adhesive with a clean, dry rag. We recommend using Sikadur 30 two-component epoxy resin.

6 – Place a weight on the stud until the adhesive has set (refer to the instructions).

IMPORTANT: Do not bend the cable where it leaves the stuffing box. Protect cables in a sheath. The guarantee may not apply if these instructions are not followed.

Lifespan and warranty
2-year warranty*
LED: 100,000 hours (> 10 years of round-the-clock operation).

* The warranty applies in the event of complete failure of the self-contained lighting system during normal usage. It covers replacement of the faulty article with an identical model delivered free of charge to destinations in metropolitan France, after the faulty article has been returned and analysed. Removal of the faulty article, installation of the new one and any mechanical damage are not covered by the warranty.
