Projecting hard-wired edge stud

Low-consumption luminous beaconing solution, suited to areas that cannot be crossed by motor vehicles.

Resistance
2T
Standards
IK10 (20 Joules)
IP68
LED Colors
6500K
4000K
3000K
Amber
Red
Green
Blue
Beaconing

12 LED, 24 LED, Constant, Blinking, Synchronized blinking, Sequential, Grazing, Vertical

Customization

Custom wiring

Recycling
Ecosystem
Certifications
RoHS
CE
Veritas
CapTronic

TECHNICAL CHARACTERISTICS

Dimensions and weight
Length: 100 mm.
Width: 88 mm.
Height: 31 mm.
Saillie: 31 mm.

Materials
Aluminium.
Recycling managed by ECOSYSTEM.

Power supply / Consumption
24V dc / 0.96 Wh to 1.92 Wh.
230V AC on request (constant LEDs only).

Electrical class
III

Working temperature range
-30°C to +85°C.

Applications
Beaconing of tunnels, car parks, bridges, vertical walls, etc.

Connections
Each ECO-824 stud is delivered with 1 metre of cable as standard (other lengths can be supplied on request).

Protection indices
IP 68 (watertightness).
IK 10 (impact resistance).



LIGHTING CHARACTERISTICS

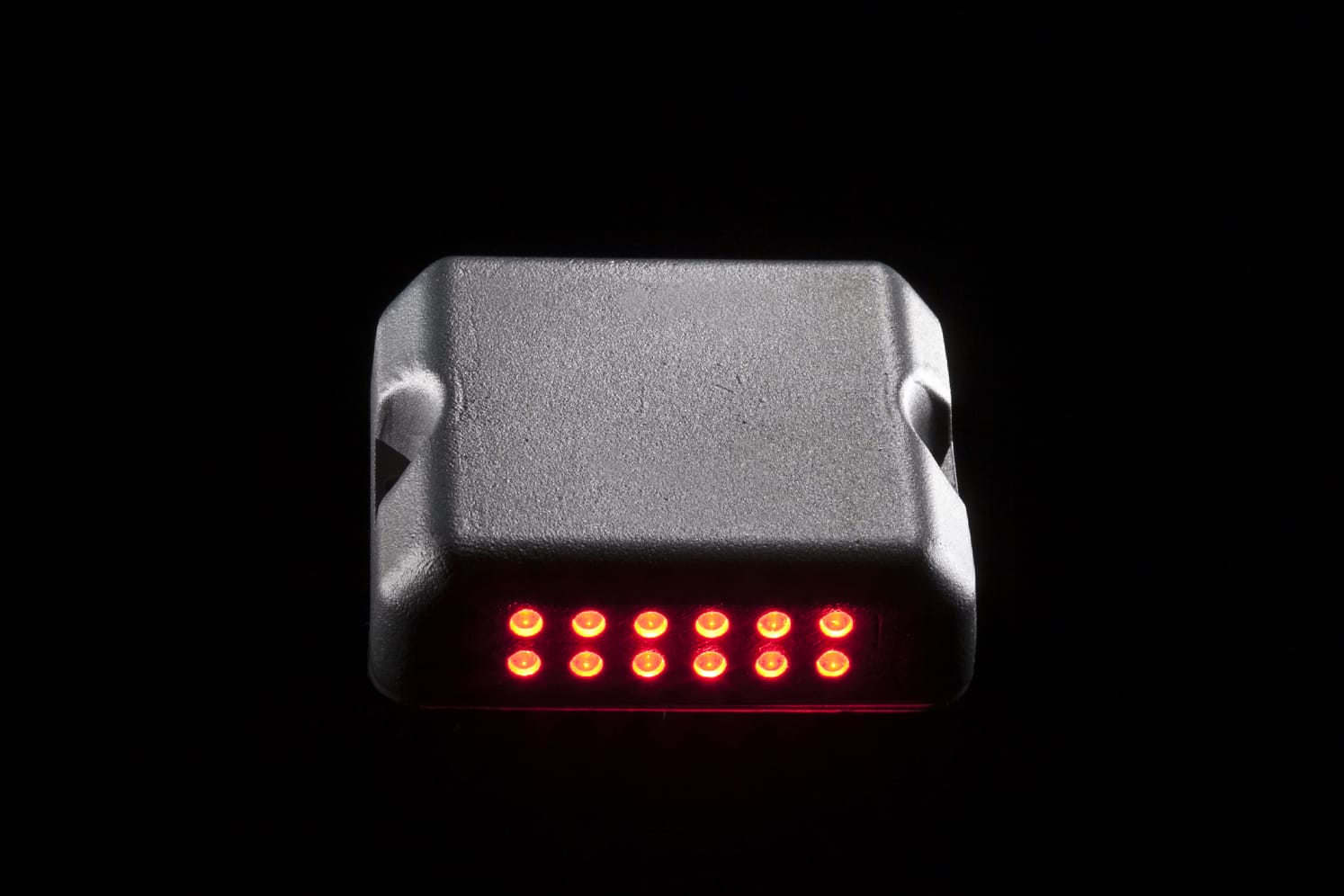

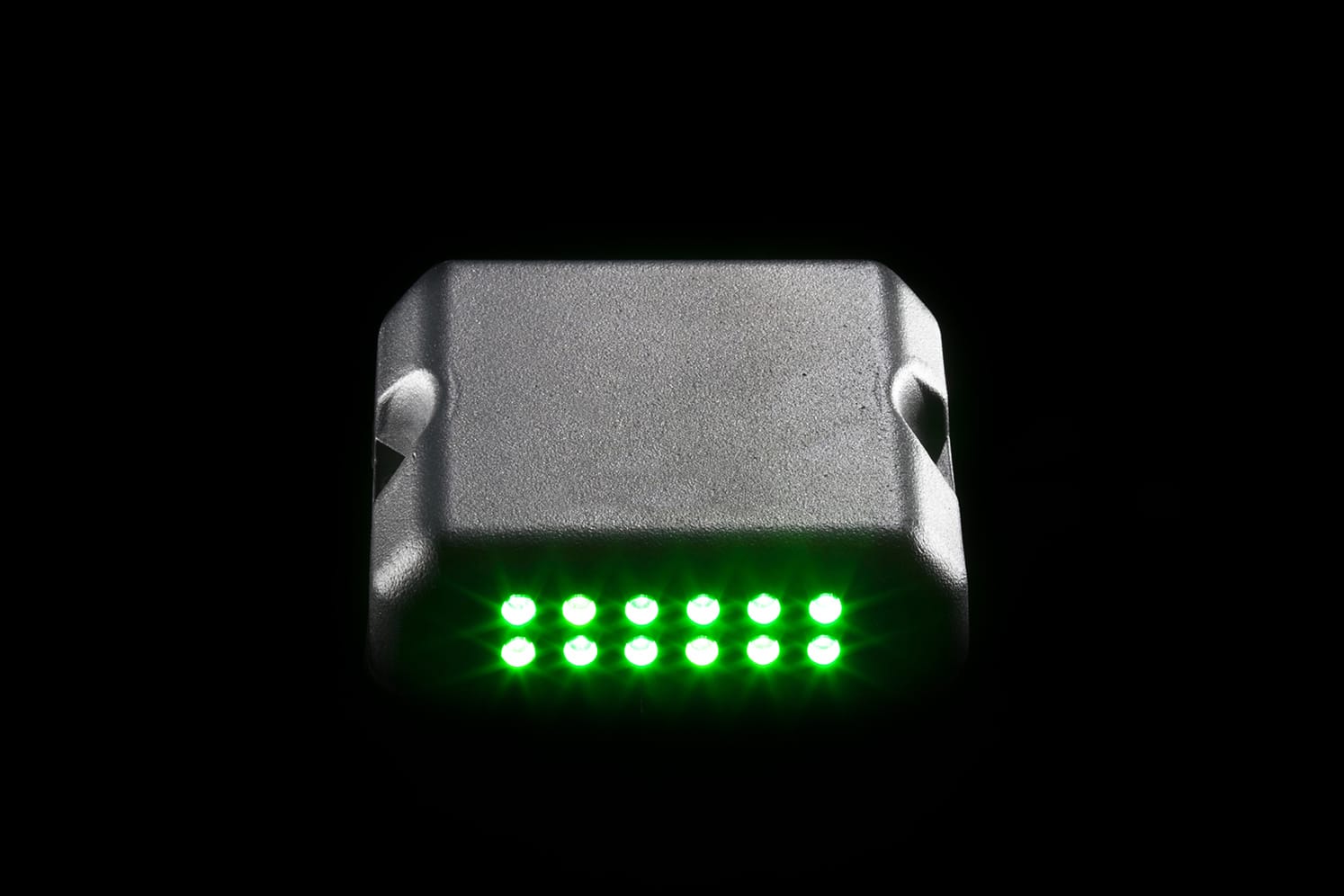

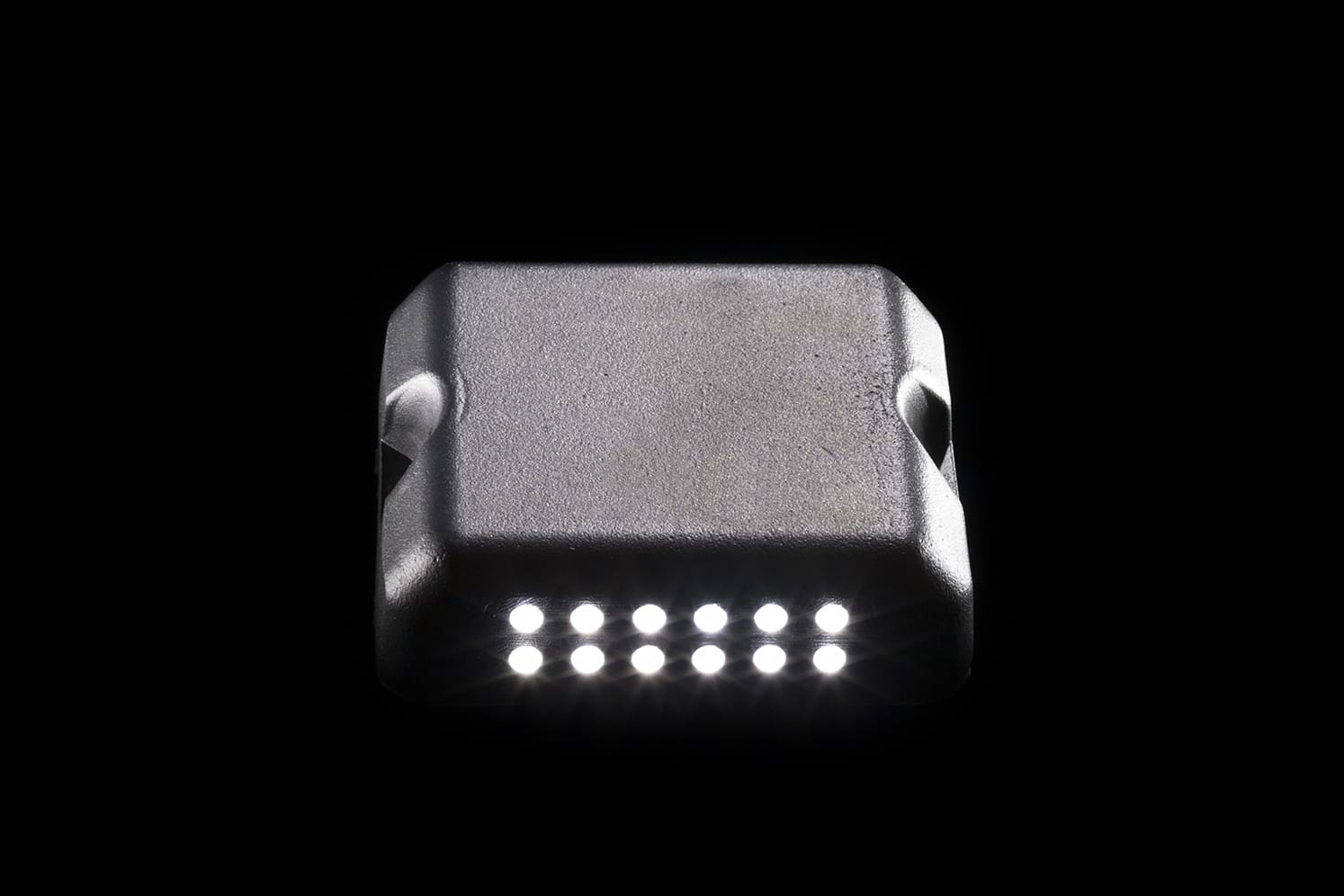

Unidirectional 12 LEDs or bidirectional 2×12 LEDs.
Constant mode, blinking or sequential.
LED colours: white, blue, green, red, amber.

Lifespan and warranty
2-year warranty*
LED: 100,000 hours (> 10 years of round-the-clock operation).

* The warranty applies in the event of complete failure of the self-contained lighting system during normal usage. It covers replacement of the faulty article with an identical model delivered free of charge to destinations in metropolitan France, after the faulty article has been returned and analysed. Removal of the faulty article, installation of the new one and any mechanical damage are not covered by the warranty.

Recycling

ECO-INNOV is a founder member of a network that recycles professional WEEE, managed by the eco-organisation ECOSYSTEM. We pay for our customers’ electronic safety, lighting and regulation equipment to be collected at the end of its working life in order to meet our legal obligations and help them to meet theirs.

The unique identifier FR006801_05MBCK attesting to registration in the register of producers in the EEE sector, pursuant to article L.541-10-13 of the Environmental Code, has been assigned by ADEME to the company ECO- INNOV (SIRET 451 859 409 00026). This identifier certifies its conformity with regard to its obligation to registration in the register of producers of Electrical and Electronic Equipment and the realisation of its declarations of placing on the market with Ecosystem.

ECO-INNOV is thus one of the first producers to offer its customers a simple and free solution for collecting their professional WEEE, regardless of when it was marketed. The equipment is collected via a network of professional waste collection centres and certain wholesalers.
