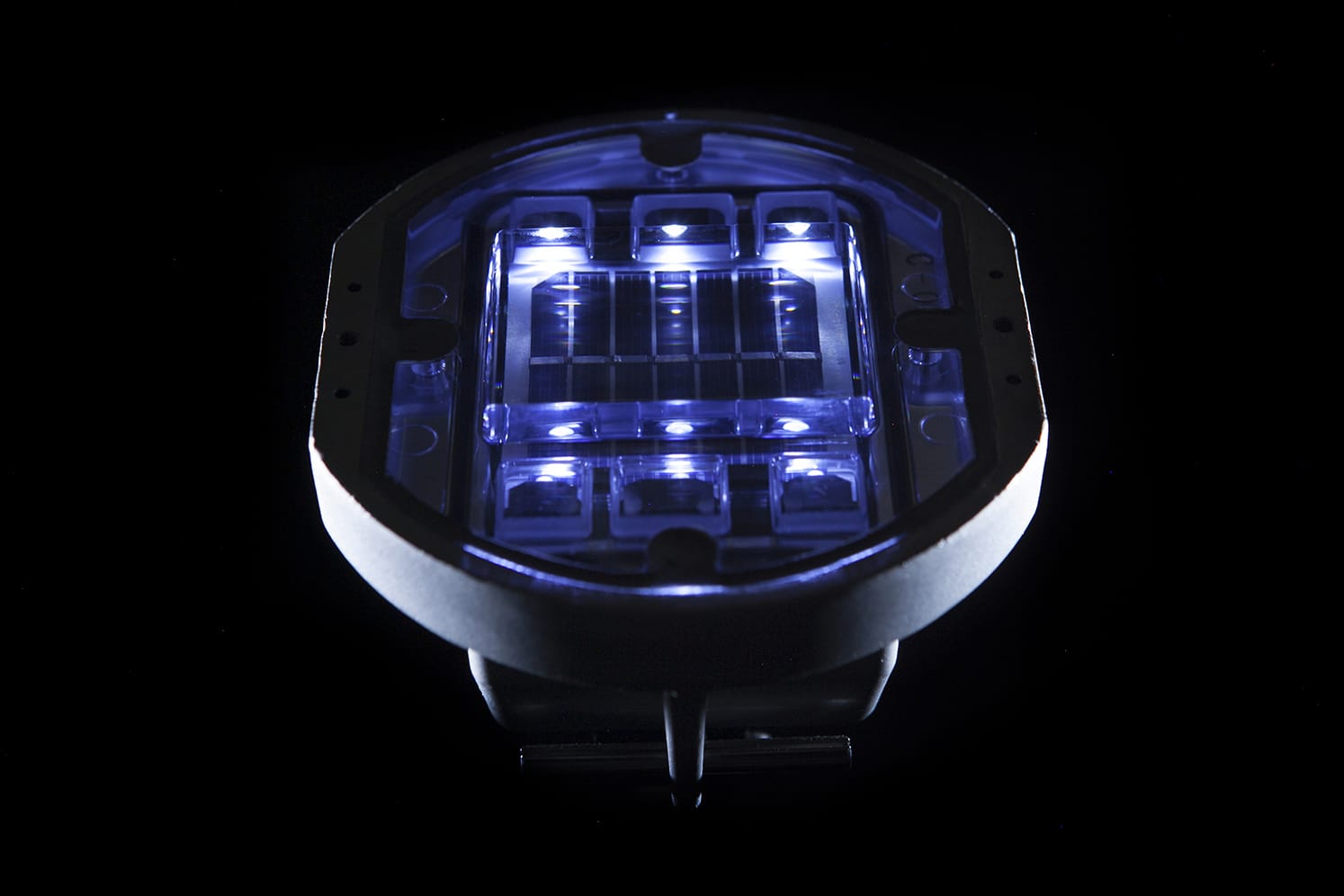

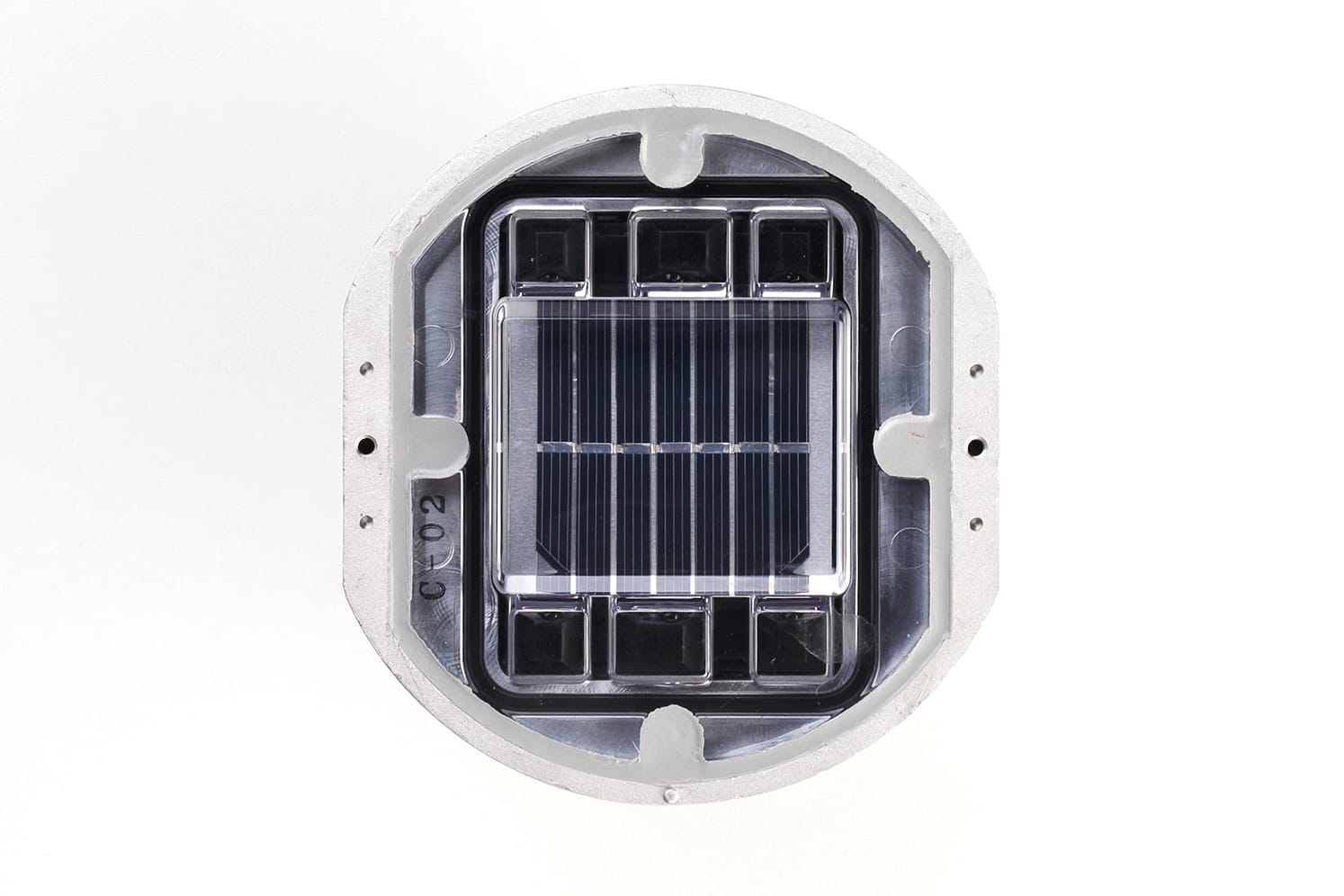

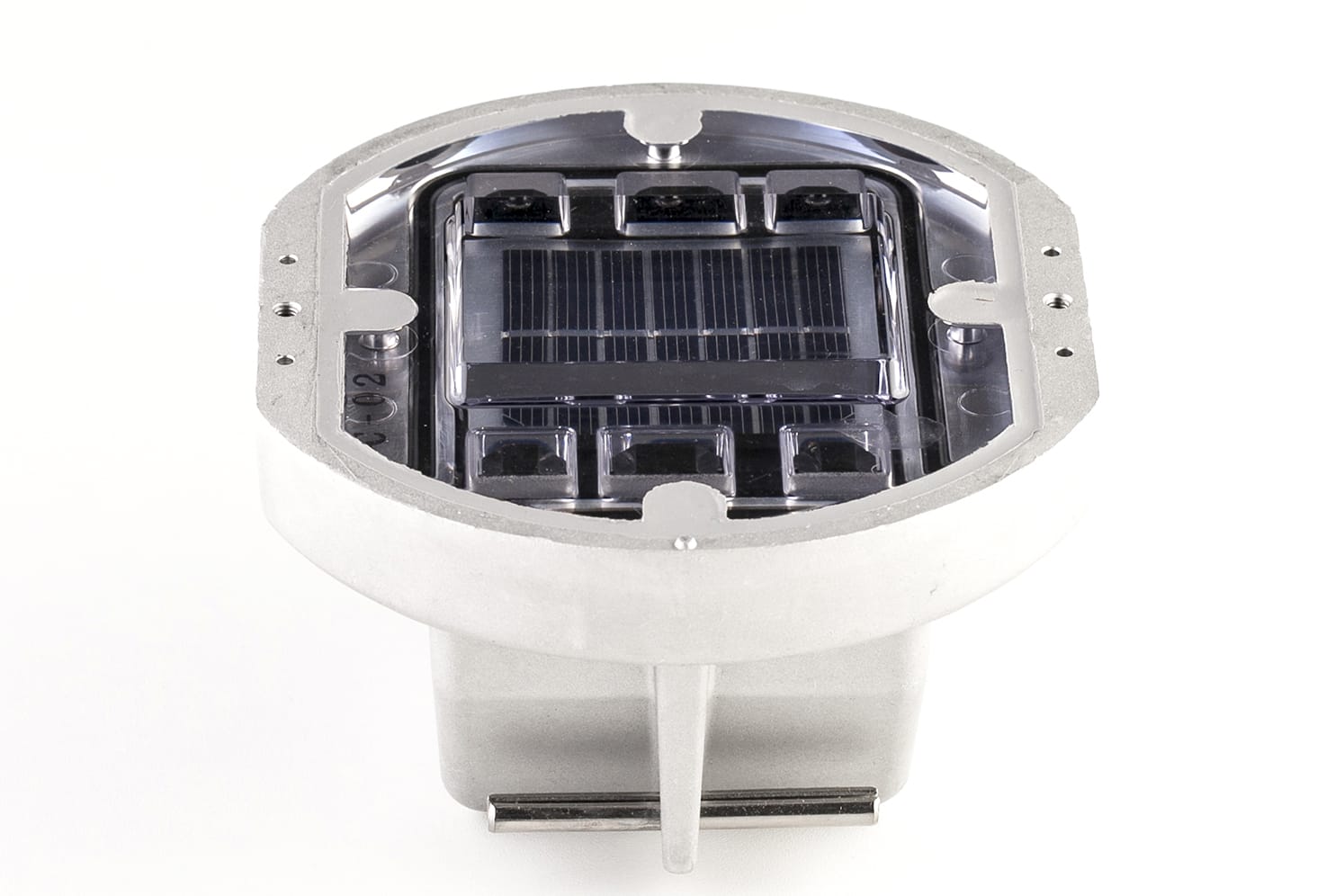

Road embedded solar stud

Fully self-contained luminous beaconing solution. Beaconing of pedestrian crossings, raised platforms, etc. Suited to roads with regular heavy vehicle traffic.

Resistance
Pedestrian
Cyclist
Car
Truck
40T
Standards
IK10+ (100 Joules)
IP68
LED Colors
Red
Amber
6500K
Green
Blue
Beaconing

1 LED, 2 LED, 6 LED, Constant, Blinking, Grazing

Customization

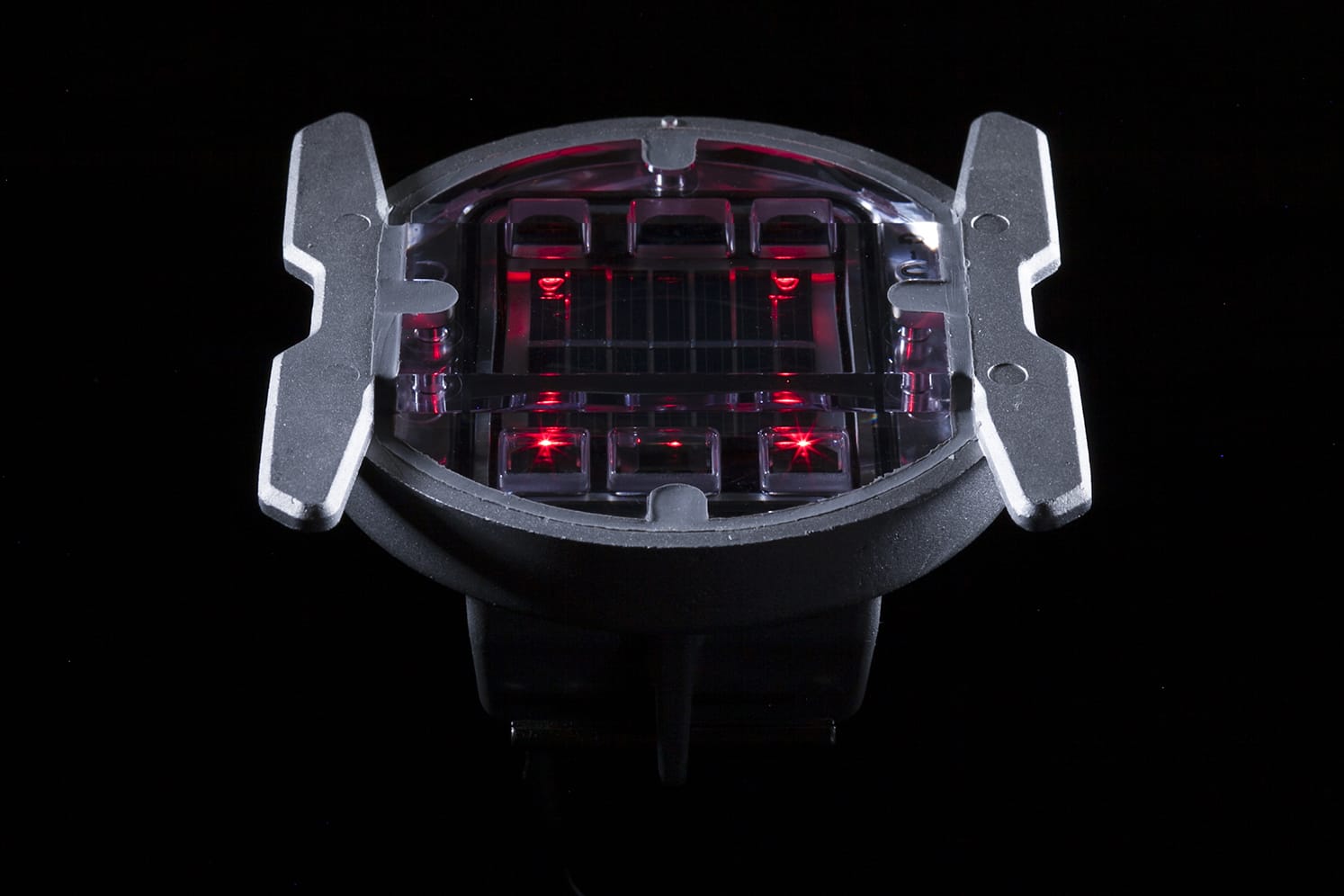

Snowplough cover, Stainless steel cap

Recycling
Ecosystem
Screlec
Certifications
RoHS
CE
Veritas
CapTronic

TECHNICAL CHARACTERISTICS

Dimensions and weight
Upper diameter excluding fins: 142 mm. Total height: 83 mm.
Height above roadway: 5 mm.
Weight: approximately 980 g.

Materials
Aluminium, Polycarbonate, Silicon (photovoltaic panel).
Recycling managed by ECOSYSTEM.

Energy storage
Condenser.

Working temperature range
-20°C à +80°C.

Protection indices
IP 68 (watertightness).
IK 10+ 100 Joules (impact resistance).


LIGHTING CHARACTERISTICS

Unidirectional or bidirectional, constant or blinking beaconing 2Hz or 4Hz (flashes per second) ±10%.
LEDs Ø 5 mm – Angle 15° (brand: NICHIA®).
LED colours: white, blue, amber, red or green.

1 – After deciding where the studs are to be installed, drill a hole with a minimum diameter of 160 mm and 90 mm deep.

2 – Carefully brush and clean the hole to remove any dust and traces of damp that would affect the efficiency of the adhesive.

3 – Pour the bonding adhesive or mortar into the hole to about 2/3 of the height. We recommend using Sikadur 30 two part epoxy adhesive.

4 – Press the stud into the adhesive, making sure the LEDs are facing the right way. Remove any residual adhesive with a dry cloth and leave it to set for several hours depending on the ambient temperature (see the adhesive manufacturer’s instructions). Lastly, remove the plastic film protecting the stud’s polycarbonate screen.

Remark : make sure to keep the module and LEDs clean and protect them throughout these operations.

Failure to comply with these instructions may lead to the guarantee being suspended.

Lifespan and warranty

Average lifespan more than 10 years.
2-year warranty*

* The warranty applies in the event of complete failure of the self-contained lighting system during normal usage. It covers replacement of the faulty article with an identical model delivered free of charge to destinations in France, after the faulty article has been returned and analysed. On-site intervention fees are not included. Mechanical damage are not covered by the warranty.

For optimal operation, we recommended to install our solar equipment on sites with good light exposure.
