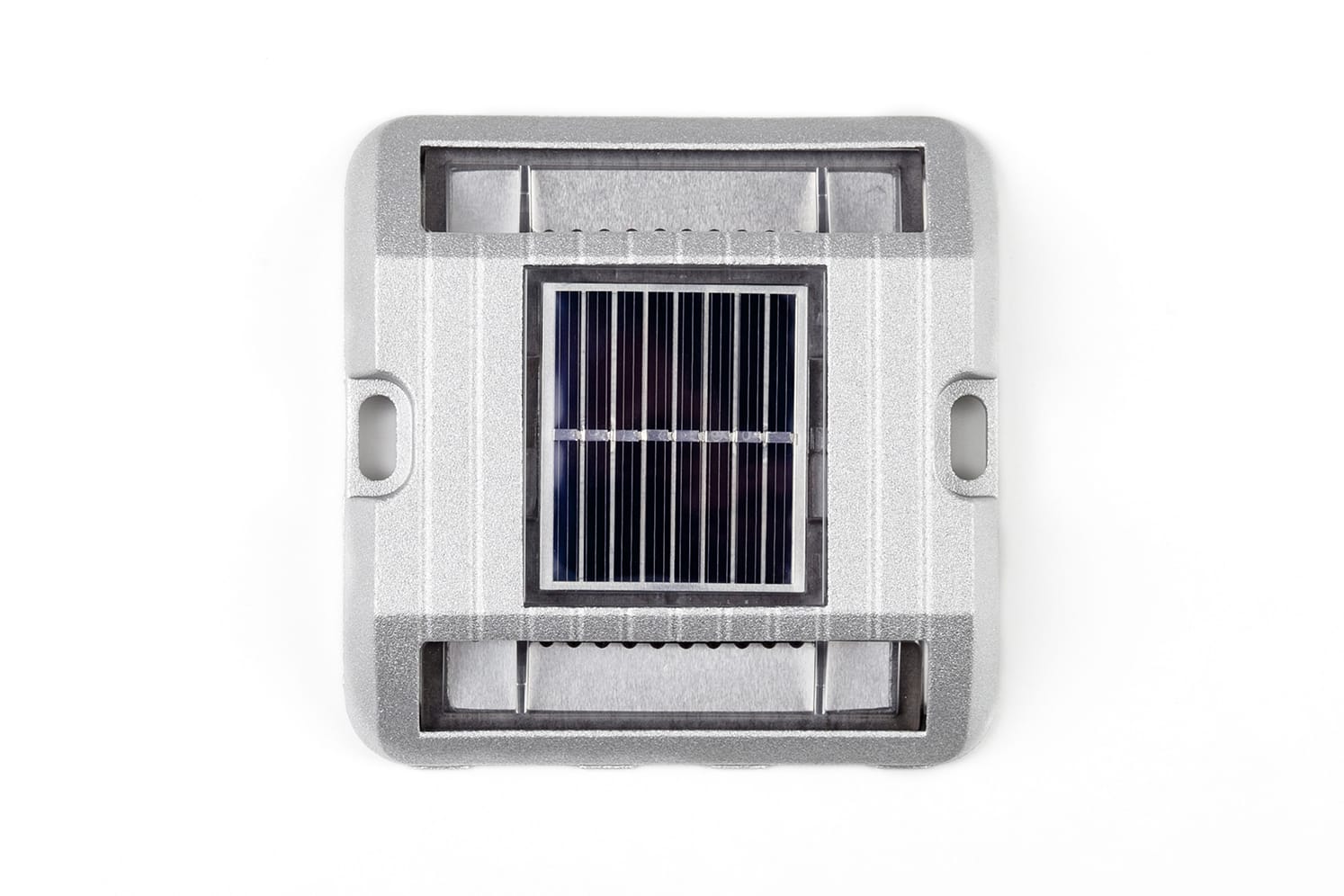

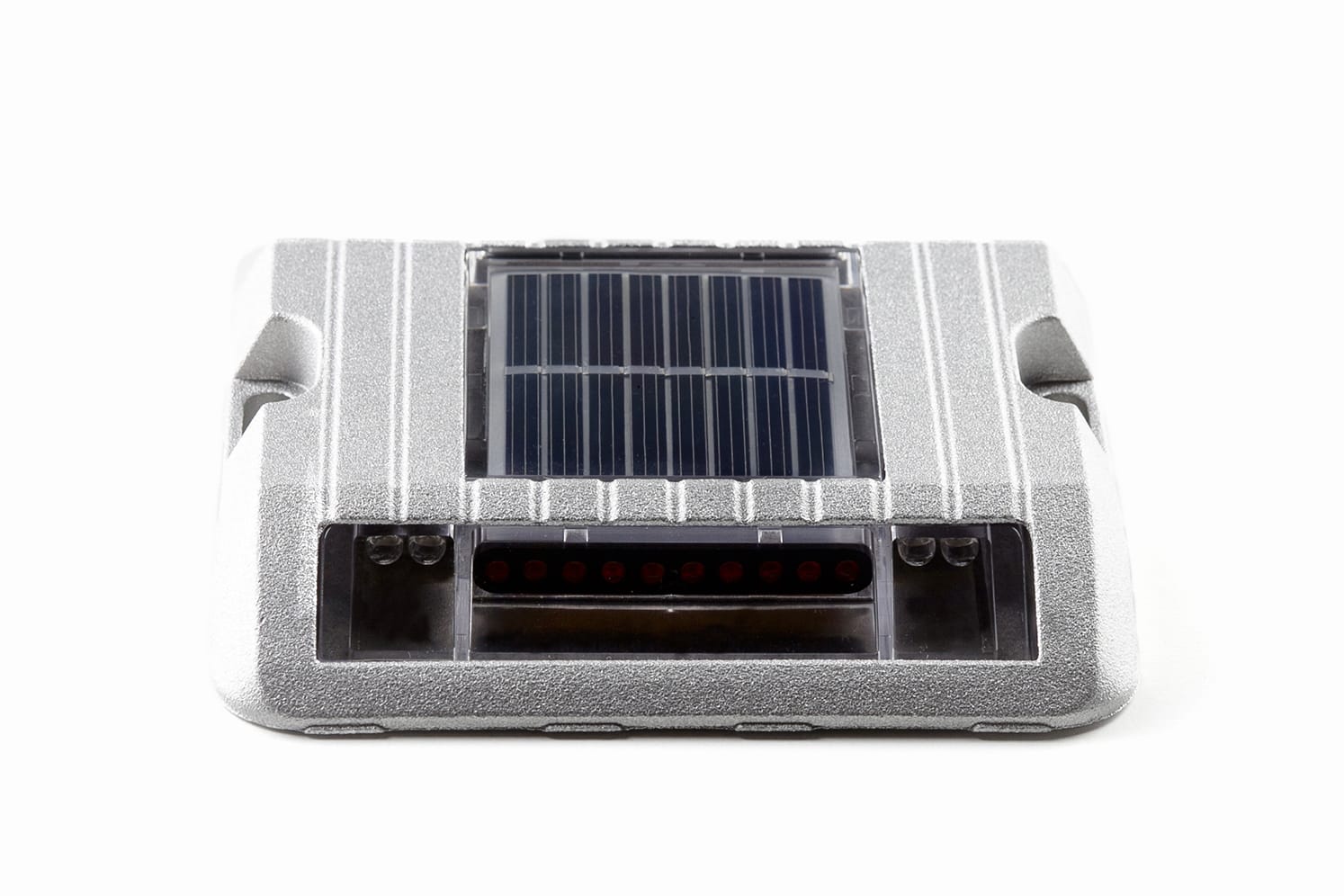

Surface solar beacon
Fully self-contained luminous beaconing solution. Used to mark the edges of roundabouts, traffic islands, obstacles, pavements. Very simple and quick to install by glueing and screwing on to the support.
Applications
Resistance
Standards
LED Colors
Beaconing
2 LED, 4 LED, Blinking, Grazing
Recycling
Certifications
TECHNICAL CHARACTERISTICS
Dimensions and weight
118 mm x 118 mm x 20 mm.
Height above roadway: 20 mm.
Weight: approximately 500 g.
Materials
Polycarbonate / Aluminium / Reflector equipped with glass beads.
Recycling managed by ECOSYSTEM.
Energy storage
Ni-MH accumulator.
Working temperature range
-30°C to +85°C
Protection indices
IP 68 (watertightness).
IK 10 (impact resistance).
Not suitable for roadway use.
LIGHTING CHARACTERISTICS
Unidirectional 2 or 4 LEDs, or bidirectional 2×2 LEDs.
Blinking 4Hz (4 flashes per second) ±10%.

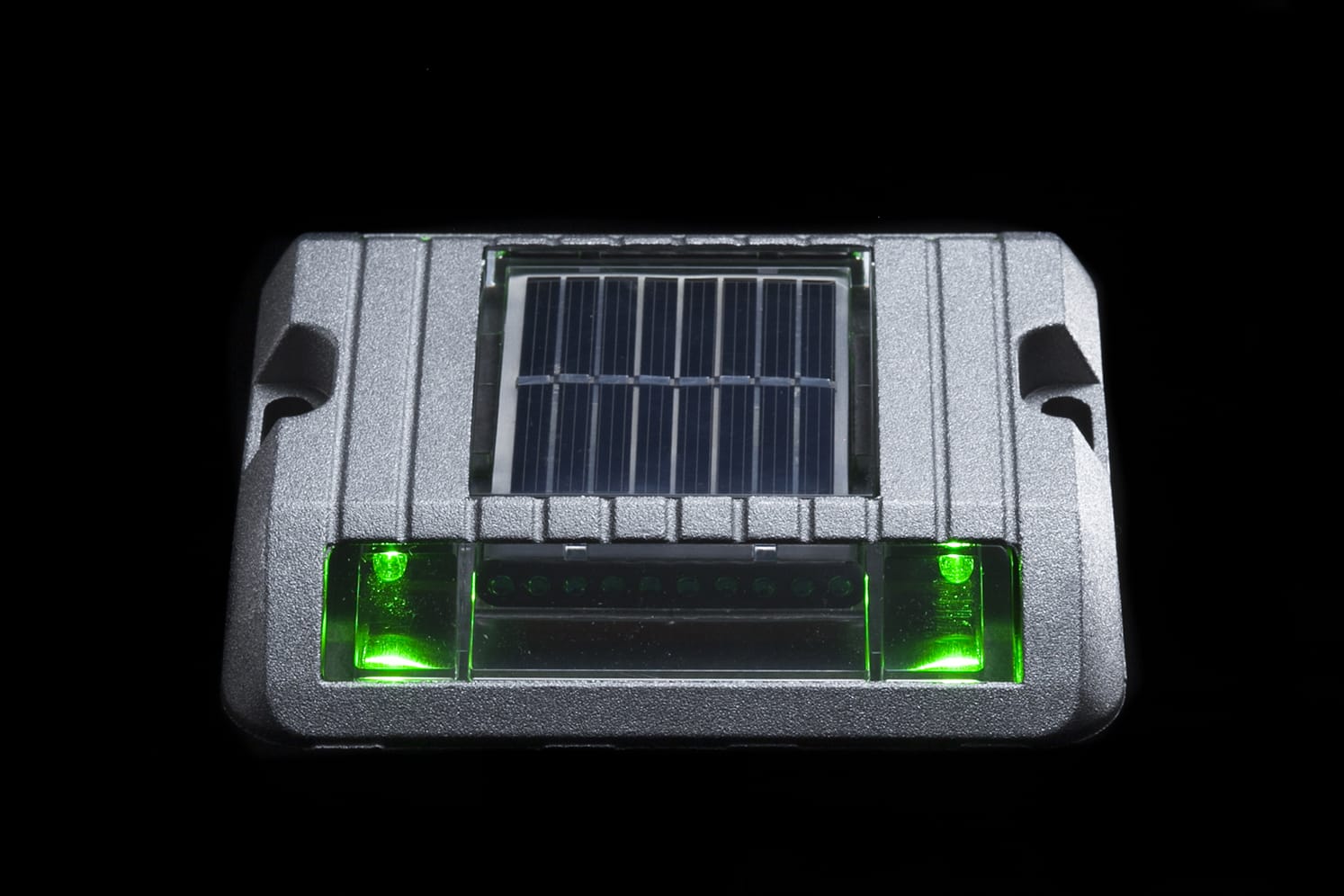

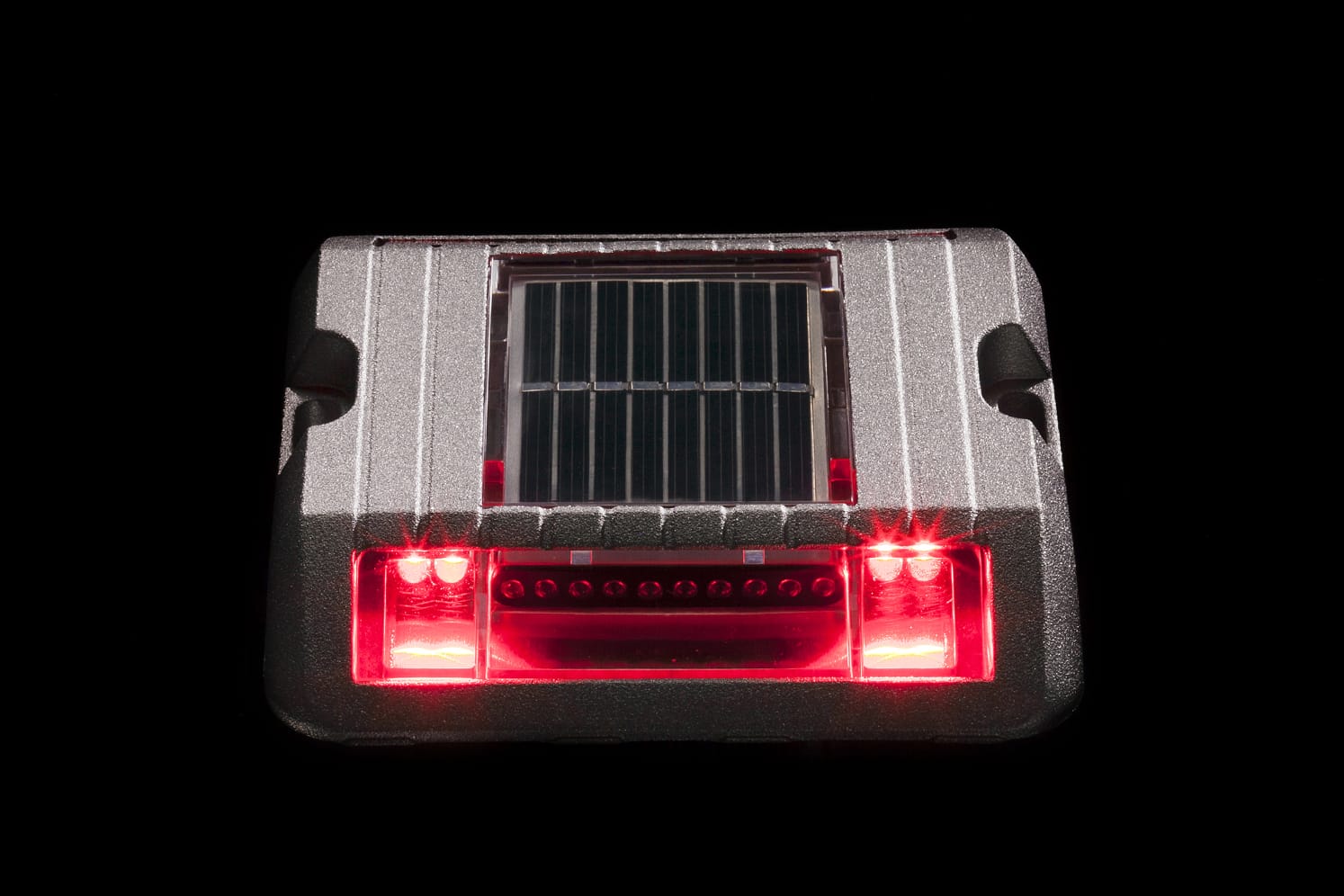

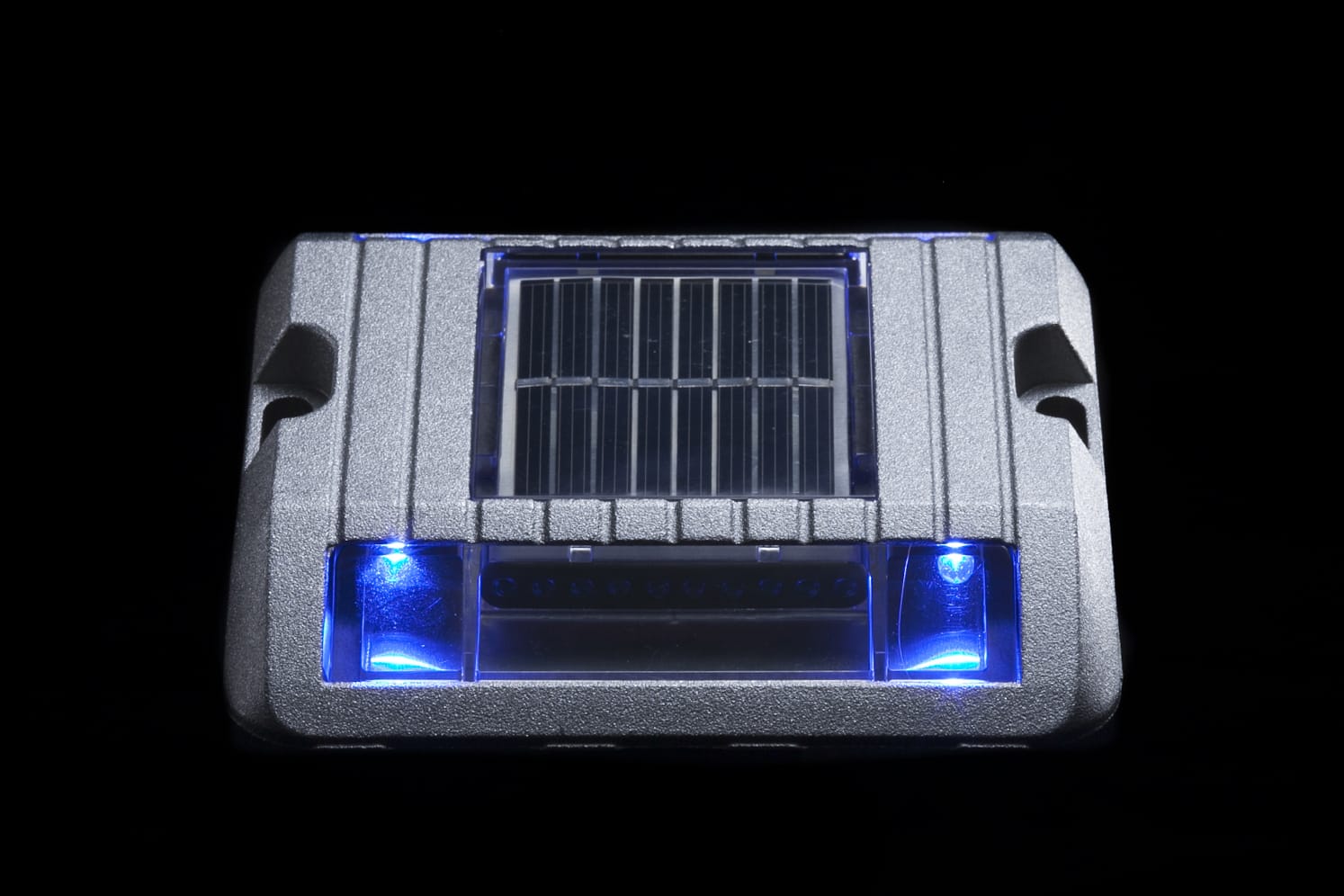

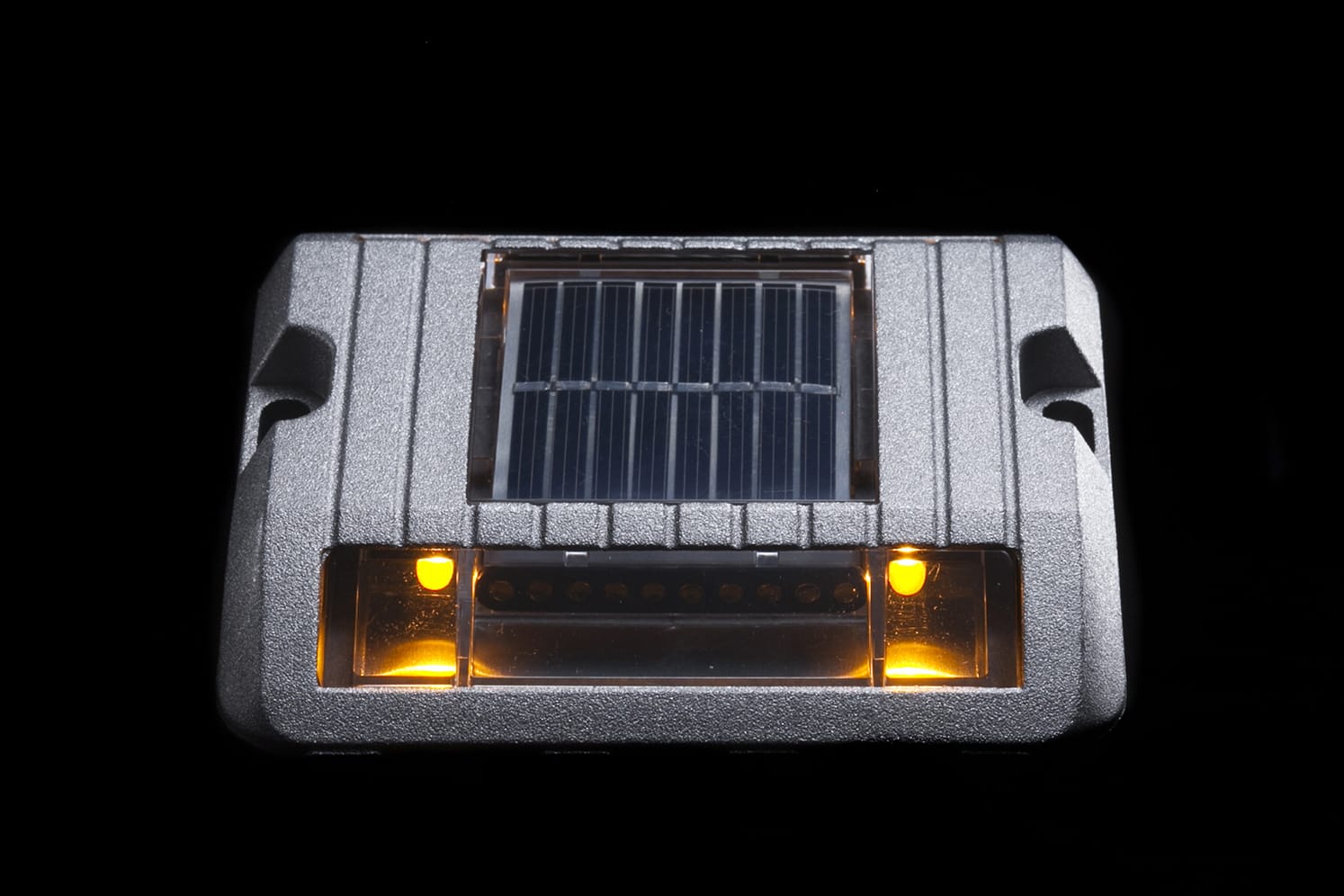

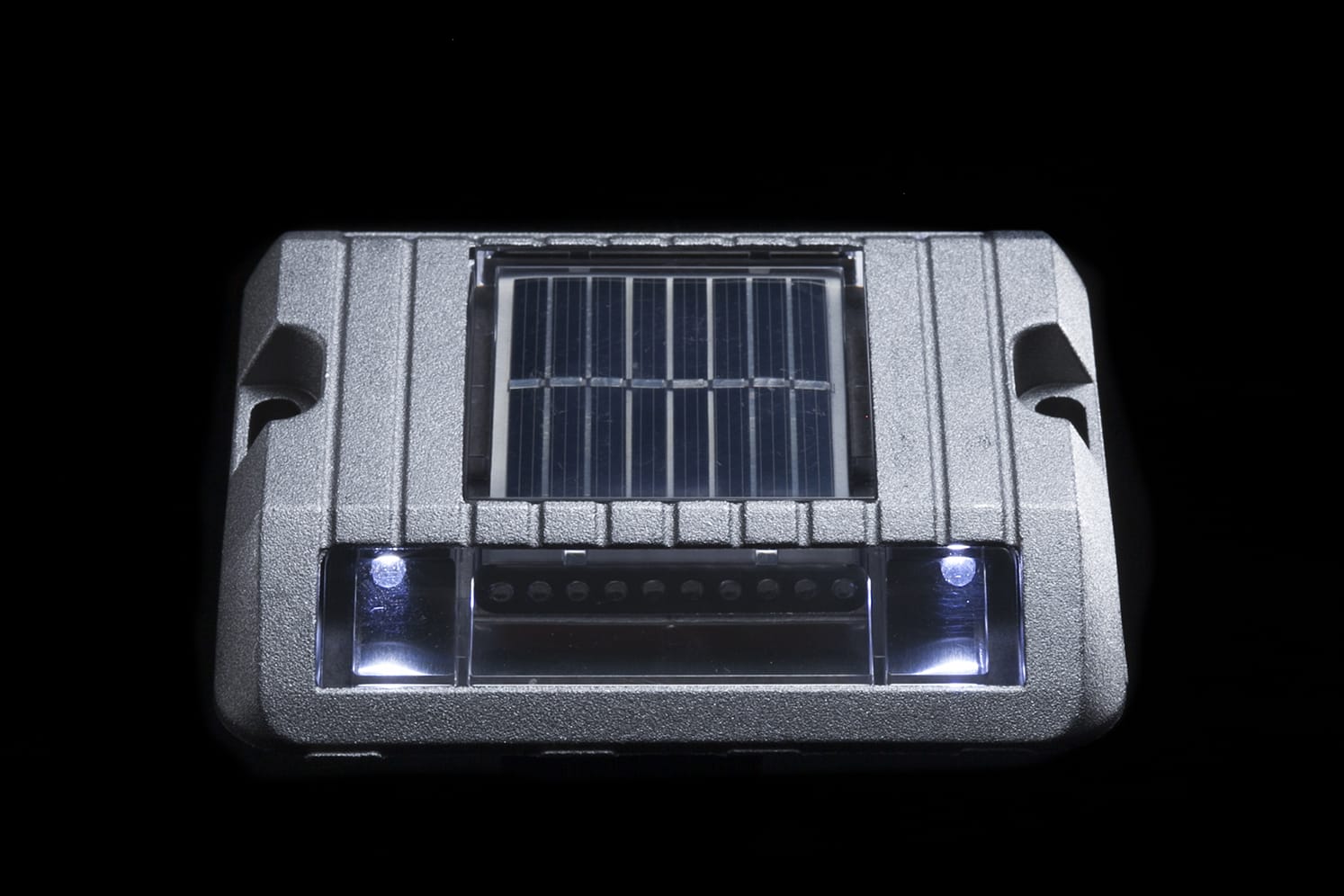

LED Colours: white, blue, green, red, amber.
Bidirectional central reflector (passive retro-reflective system), ensuring greater visibility for users).
1 – After deciding where the stud and screws are to be installed, drill the support (Ø 11 mm, depth 33 mm), making sure to leave a distance of 106 mm between the centres of the 2 screws.
2 – Carefully brush and clean the holes, support and lower part of the stud with a degreasing agent (Sika Aktivator 205 or equivalent) to remove all traces of dust and moisture. Then hammer the lower part of the attachment screws into the holes.
3 – Remove the magnet under the stud and check that the LEDs are working properly by completely masking the solar module (to simulate night-time conditions). Apply about 3 mm of two-component epoxy adhesive (Sikadur 30 or equivalent) to the entire lower surface of the stud. Position the stud on the support, making sure the LEDs are facing the right way. Screw the upper part of the screws into their base using the wrench supplied.
4 – Leave the adhesive to set (see the manufacturer’s instructions for the necessary time). The entire lower surface of the stud must be coated with 3 mm of adhesive. Clean any residues adhering around the stud.
5 – The stud isnow installed correctly.
Remark: make sure to keep the module and LEDs clean and protect them throughout these operations.
Failure to comply with these instructions may lead to the guarantee being suspended.
Lifespan and warranty
2 year warranty.*
Average lifespan more than 5 years.
* The warranty applies in the event of complete failure of the self-contained lighting system during normal usage. It covers replacement of the faulty article with an identical model delivered free of charge to destinations in metropolitan France, after the faulty article has been returned and analysed. Removal of the faulty article, installation of the new one and any mechanical damage are not covered by the warranty.
