ECO-100

Solar-powered LED decorative paving stone

Beaconing solution requiring no energy. Constant vertical beaconing with 1 high-luminosity LED and optical diffuser. Used for applications such as terraces, pathways, edges, low walls, etc.

Applications

Pontoons / Footbridges

Resistance
Pedestrian
Cyclist
Car
10T
Standards
IK10 (20 Joules)
IP68
LED Colors
Beaconing

1 LED, Constant

Recycling
Recylum
Screlec
Certifications
RoHS
CE
Veritas

TECHNICAL CHARACTERISTICS

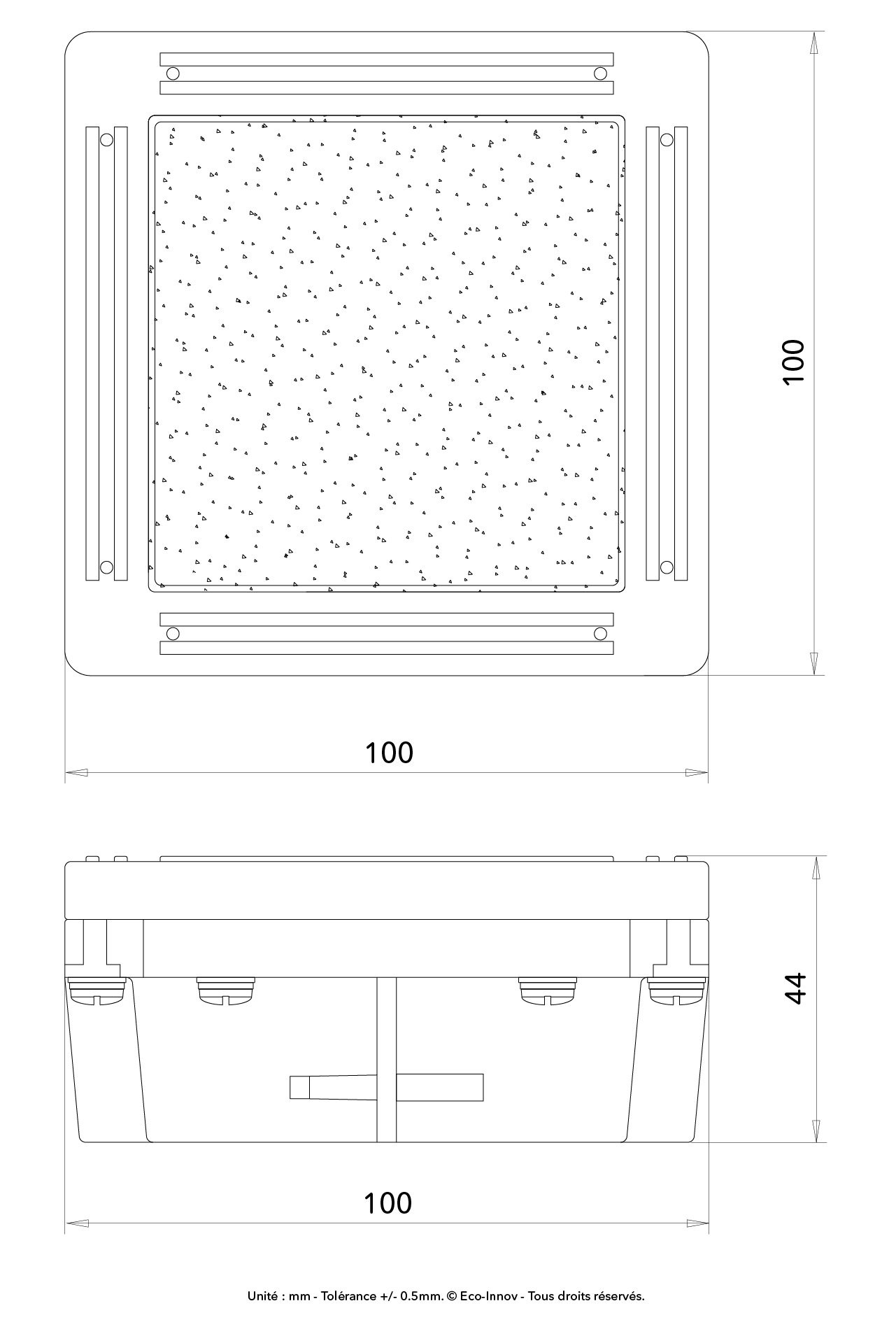

Dimensions and weight
Dimensions : 100 x 100 x 44 mm
Height above roadway : 0 mm
Weight : 330 g.

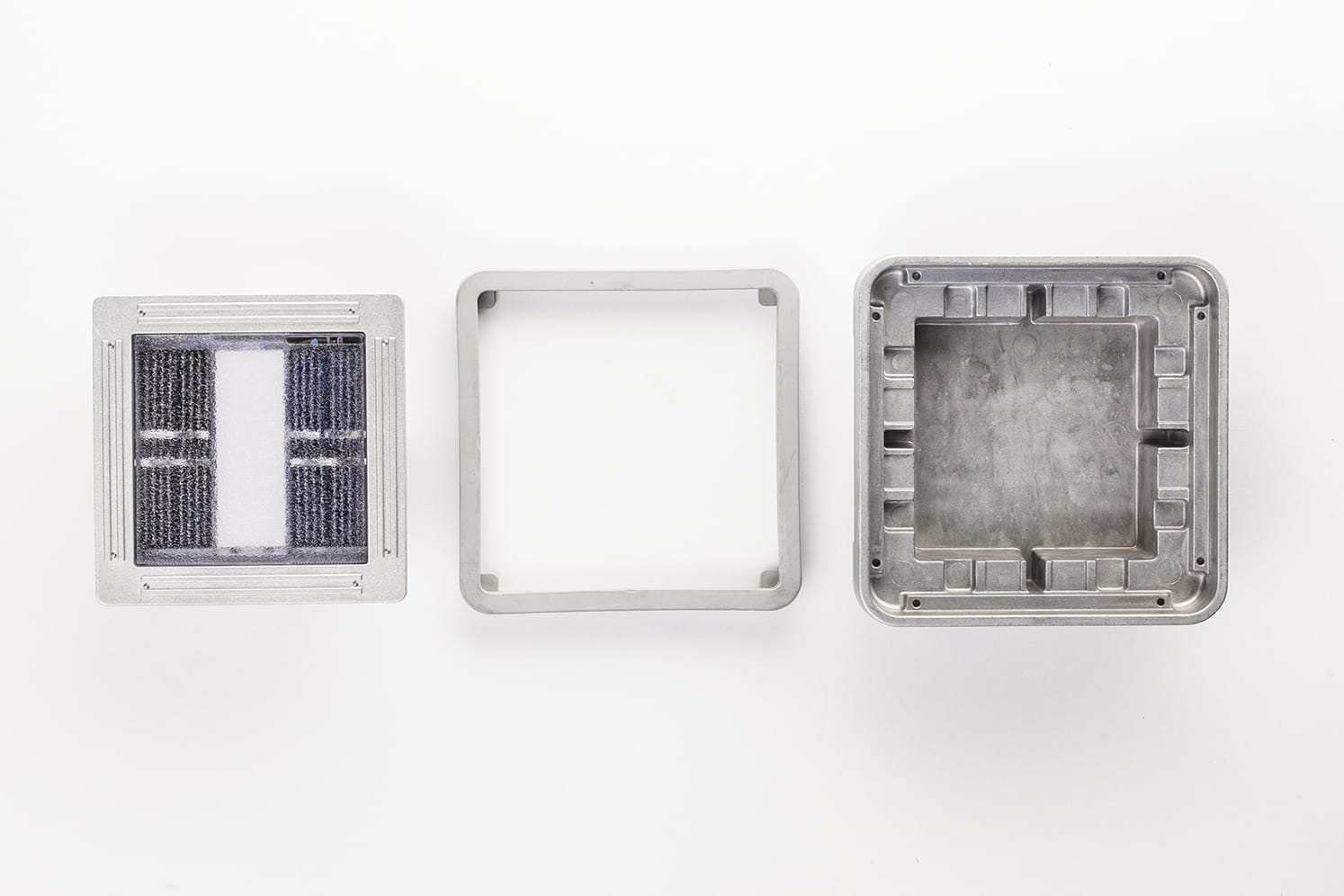

Materials
Polycarbonate, Aluminium.
Recycling managed by Recylum.

Energy storage
Condenser for a longer average lifespan.

Working temperature range
-30°C to +85°C

Protection indices
IP 68 (watertightness)
IK 10 (impact resistance)

Pressure resistance
10 tonnes maximum (can withstand the weight of a motorised vehicle).


LIGHTING CHARACTERISTICS

Constant vertical beaconing with 1 high-luminosity LED and optical diffuser.

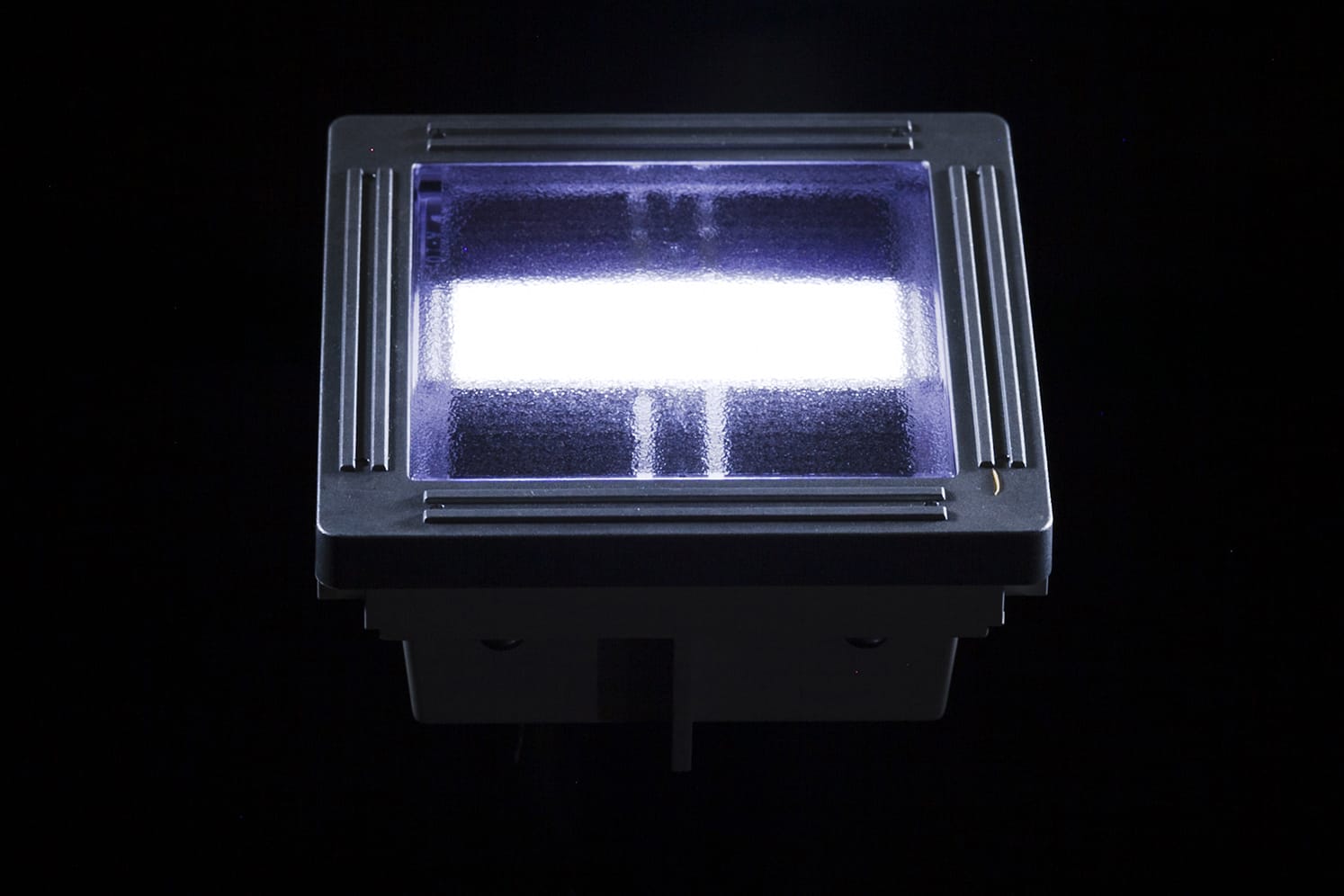

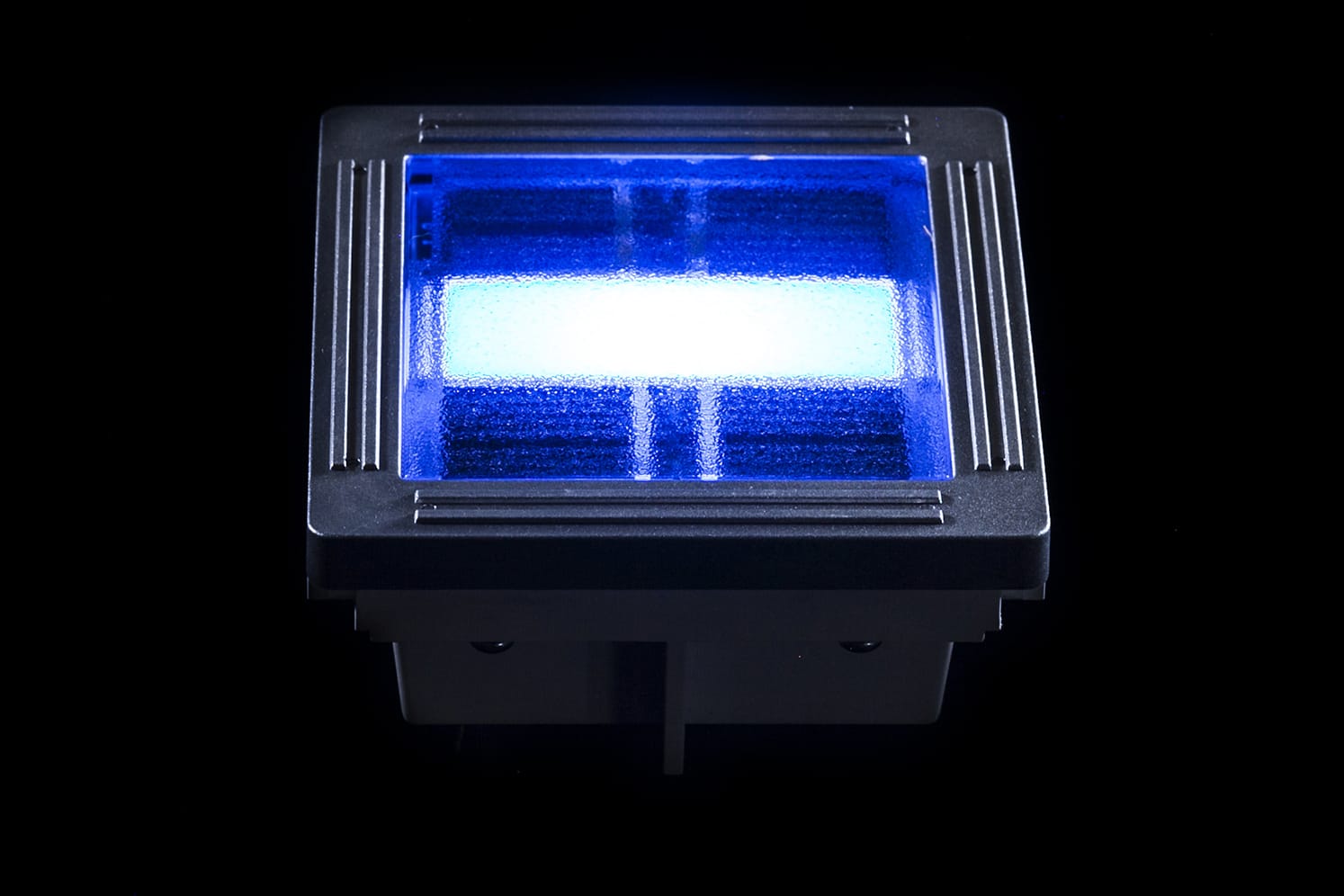

Standard colours : cool white and blue.
Other colours available on request : warm white, green and red.

1 – After deciding where the studs are to be installed, cut a hole or recess with a minimum length and width of 105 mm and 50 mm deep. It is also possible to drill a circular hole with a minimum diameter of 145 mm and 50 mm deep.

2 – Carefully brush and clean the hole to remove any dust and traces of damp that would affect the efficiency of the adhesive.

3 – Apply a fine coat of Sikaprimaire 209 N over the entire lower surface and on the sides of the solar paving stone (which will be in contact with the adhesive). Leave it to dry for about 10 min (at a temperature of more than 15°C). Pour the bonding adhesive into the hole to about 1/3 of its height (depending on the dimensions of the hole). N.B. Do not use cement or any other alkaline mortar, but silicone- or polymer-based adhesives that are sufficiently elastic to withstand expansion and vibrations, for example. We recommend Sikaflex 521 UV.

4 – Press the ECO-100E into the adhesive by hand to position it level with the ground. Immediately clean all residual adhesive with a clean, dry cloth. Leave the adhesive to set (see the manufacturer’s instructions for the time required).

Remark : make sure to keep the module and LEDs clean and protect them throughout these operations.

Failure to comply with these instructionss may lead to the guarantee being suspended.

Lifespan and warranty

Average lifespan more than 10 years.
2 year warranty.*

* The warranty applies in the event of complete failure of the self-contained lighting system during normal usage. It covers replacement of the faulty article with an identical model delivered free of charge to destinations in France, after the faulty article has been returned and analysed. On-site intervention fees are not included. Mechanical damage are not covered by the warranty.

For optimal operation, we recommended to install our solar equipment on sites with good light exposure.

Recycling

ECO-INNOV is a founder member of a network that recycles professional WEEE, managed by the eco-organisation Recylum. We pay for our customers’ electronic safety, lighting and regulation equipment to be collected at the end of its working life in order to meet our legal obligations and help them to meet theirs.

ECO-INNOV is thus one of the first producers to offer its customers a simple and free solution for collecting their professional WEEE, regardless of when it was marketed. The equipment is collected via a network of professional waste collection centres and certain wholesalers.


www.recylum.com
